CRL CB105

Name: CRL CB105 Brushed Nickel Adjustable Double Shelf Brackets for the Cable Display System
Brand: C. R. Co., Inc.
SKU: CRL CB105
Price: 110.20 USD

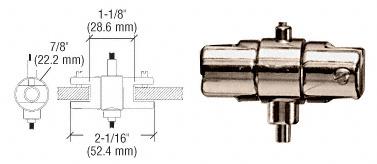

CRL CB105 Brushed Nickel Adjustable Double Shelf Brackets for the Cable Display System

× This image is for a similar product but it will differ in size, color and/or other attributes.

CRL CB105 Brushed Nickel Adjustable Double Shelf Brackets for the Cable Display System

Price: $110.20 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Secaucus Qty: 7

Atlanta Qty: 1

Moorestown Qty: 1

Los Angeles Qty: 231

For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

CRL CB105 Brushed Nickel Adjustable Double Shelf Brackets for the Cable Display System

Adjustable Double Shelf Brackets
For Cable Display System
Brushed Nickel finish
Material: Brass
Diameter: 7/8"
Length: 2-1/16"
Glazing Thickness: 5/16"
Weight Capacity: Each Column (4 cables) Can Bear A Total Weight Of Up To 80 lbs. Each Shelf Can Bear A Total Weight Of 20 lbs.
Securely Hold Panels with Angle Adjustment Options for Shelves in Side-by-Side Installations
For 1/4" and 5/16" (6 and 8 mm) Panels Mounted in Side-by-Side Position
The CRL Adjustable Double Shelf Bracket for the Cable Display System has a highly efficient and secure set screw clamping system that permits the installed panel, mounted in side-by-side installations, to be angled or tilted to enhance your display or for signage purposes. Each side of the Adjustable Double Bracket can be rotated independently so that the side-by-side panels can be at different angles. To adjust the brackets to the desired angle, the "push tubes" are depressed and the brackets moved down the cable to achieve the necessary angle. For Signage purposes, only two or three cables need to be installed at the proper distance apart to accommodate the width of your sign or decorative panel.
The Fixed Brackets are very easily installed by inserting the stainless steel cable end thru the Bracket lower push tube. When the "push tube" is depressed, the Bracket can be adjusted to the desired position on the cable. The Brackets will stay firmly and securely in place on the 2 mm cable. To re-position the Brackets, simply depress the "push tube" and slide the Bracket up or down on the cable. The Brackets are designed to accommodate 1/4" to 5/16" panels. One each is the minimum order.
WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36 kg). Each shelf can bear a total weight of 20 lbs. (9 kg), when used with CB74, CB76 and CB78 Ceiling Mount Fittings. If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18 kg).
