CRL 0P27NHA

copy to clipboard

CRL 0P27NHA 3/4" Offset Reversible Pivot Set Flush with Frame Face - Satin Aluminium

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
CRL 0P27NHA 3/4" Offset Reversible Pivot Set Flush with Frame Face - Satin Aluminium
Main ImageVideo Review CRL 0P27NHA 3/4" Offset Reversible Pivot Set Flush with Frame Face - Satin Aluminium
More from C. R. Co., Inc.
Price: $20.98 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
Kent Qty: 7
Solon Qty: 1
Union City Qty: 5
Rock Hill Qty: 2
San Diego Qty: 6
Atlanta Qty: 28
Orlando Qty: 10
Moorestown Qty: 5
Phoenix Qty: 25
Los Angeles Qty: 1176
Denver Qty: 4
Sunrise Qty: 15
Elgin Qty: 34
Dallas Qty: 74
Tampa Qty: 5
Las Vegas Qty: 12
Houston Qty: 2
Standard Lead Time - For quantities beyond the "In Stock" levels available above, please reach out to our sales department for a quoted estimated lead time.
Additional Declarations - CRL has a order minimum of $45.00 - if your CRL total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount from CRL so that we can drop ship the material to your location.

1-844-809-3667

Sales
Technical Support
Product Description:

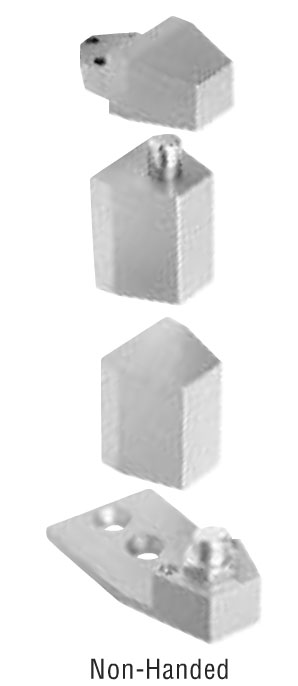

crl logo 0P27NHA 3/4" Offset Reversible Pivot Set Flush with Frame Face - Satin Aluminium
  • 3/4" offset pivot set
  • Non Handed - Reversible
  • 1/8" (3.2 mm) Vertical Adjustment
  • Suitable for Aluminum Frames and Doors Weighing Up to 125 Lbs. (57 kg)
  • Application: Flush with frame face
  • Die Cast Aluminum
  • One set per Package
  • Can ship UPS.
Questions and Answers
Q: what are the center line to center line dimensions of the two bolts for the door portion of the top pivot?
A: I have the pivots in front of me. Center line to center line dimension of the two bolts for the door portion of the top pivot is 3/4" Thank you and let me know if I can be of further assistance.
Q: I have a question regarding CR Laurence series 7200 as seen here:

Download File

what framing system is to be used for it? We currently have an s451 and it does not fit.

A: The 7200 series windows are part of the US Aluminum division of CRL and after having spoken to them the 451 as seen here:

Download File

is the compatible framing - this is confirmed with the manufacturer.

Was there something specific that was causing you difficulty about the compatibility between the 7200 series window and the 451 series framing?

Q: hello, I saw a you tube video , and it seems like you guys know a lot about door hardware. I am looking for the manufacture, and model of this pivot , see photo attachment. I appreciate any help you can provide. I need to find a way to adjust the door height, i do not see an adjustment point on the bottom pivot.Image as seen here:

View Image

Sincerely, Christopher

A: I would need to see photographs of the pivots when the doors open as well and I'd like to see the top pivot and any intermediate pivots to help identify the manufacturer - regarding adjusting the door height are you saying that you have a margin between the top of the door and the underside of the header that is greater than 1/8”?
