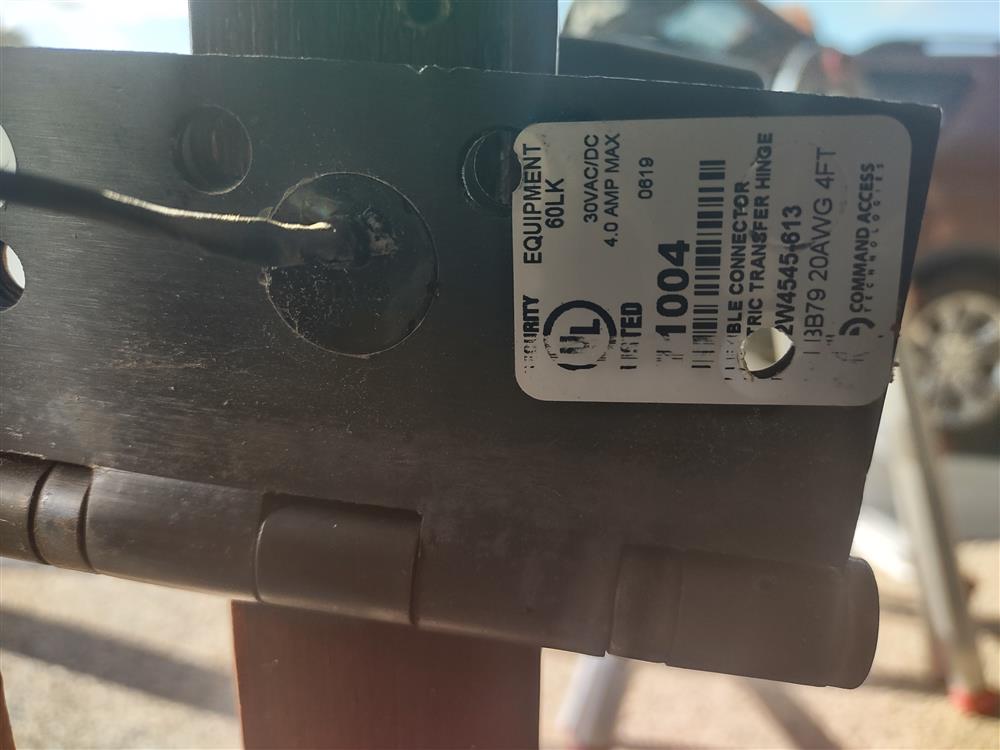

• UL Listing - 60LK - Flexible Connector on 4 wire model. • High-temp Teflon wire used: 2-6/19 gauge/strand wire – 1 amp. Continuous rating • Uses Hager hinge • Dimensions: 4-1/2" x 4" • Available in satin chrome plated • Centered access holes on most five knuckle hinges make for an easier installation. 19 strand wire on 4 wire models assure long hinge life. • 4' leads available • 3 year warranty

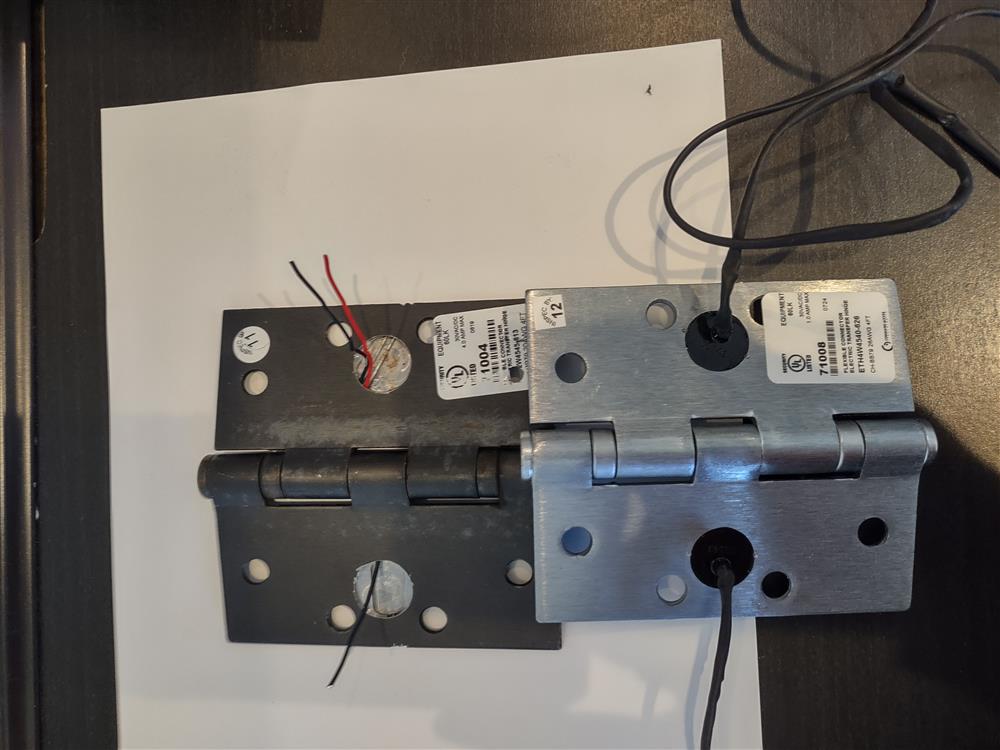

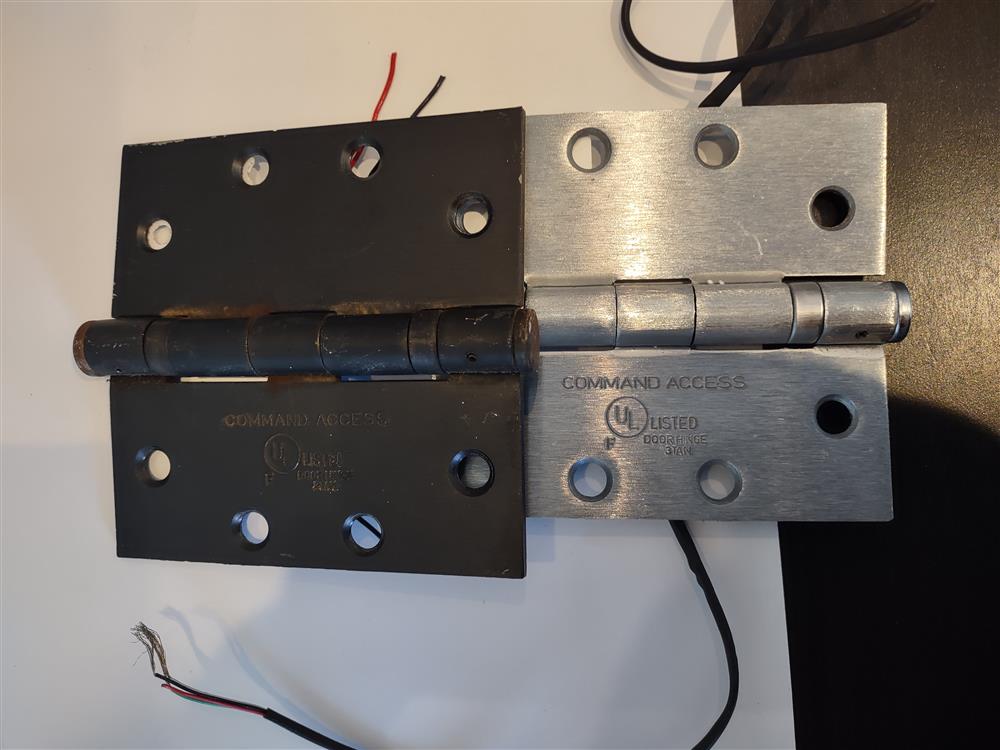

The Energy Transfer Hinges series is ideal for doors that require concealed low voltage transfer of power from the door frame hinge jamb to the door.
Common applications include passing power to: • Electrified locks • Electrified exit device trim • Electrified latch-retracting exit devices • Any application where low voltage power must be transferred from the hinge jamb to the door.
