Dorma CL700K

copy to clipboard

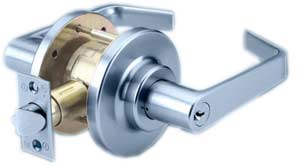

CL700 Series Cylindrycal Keyed Locks

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
CL700 Series Cylindrycal Keyed Locks
More from Dorma
Price: $109.08 USD
Ships From
Comments (Optional)
Standard - ships in 1 business day.

1-844-809-3667

Sales
Technical Support
Product Description:
DORMA’s CL700 Series Grade 2 cylindrical locksets provide exceptional security, enhanced aesthetics, and rugged dependability.

dorma These premium locks are built with a high performance cylindrical chassis for all applications where ANSI A156.2 Series 4000 Grade 1 products are required.

dorma To meet the aesthetic needs of your project, these versatile locks are available in lever trim designs — choose between the LR, LC, and in special order - LG lever designs or the KR and KB knob designs.

dorma Made in the USA.

CL700 Series Cylindrycal Keyed Locks

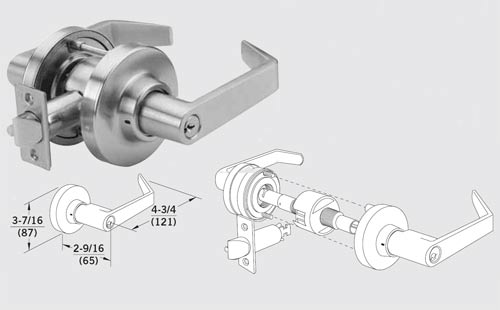

Techical picture
cut sheet
Installation Instruction
Templates
Product Brochure
Technical Drawing
Recommended Applications
arrow Schools and Universities
arrow Hotels
arrow Apartments
arrow Hospitals and Nursing Homes
arrow Churches
arrow Municipal Buildings
arrow Airports
arrow Retail Complexes
arrow Offices
arrow Warehouses
Features
• All DORMA 700 Series locks feature advanced design concepts, providing exceptional reliability and are manufactured with the finest materials, delivering enhanced durability.
DORMA 700 Series locksets are easy to install in both wood or hollow metal doors with ANSI Standard A115 preparations for cylindrical locks.
• All CL700 lever handle locks include special spring assemblies designed to hold the levers in the correct position.
• The 700 Series locks are through-bolted for additional strength and increased resistance to vibration.
• All CL700 Series locks are easily adjustable to accommodate doors from 1-5/8" to 1-7/8" (1-3/8" to 1-7/8" for CK700) thick without spacers or special tools. Consult the factory for other door thicknesses.
• All CL800 lever handle locks include a special, high strength spring and positive stop to eliminate unsightly sagging levers.
• LR, LC, and LG lever designs include a special breakaway function to maintain security when the lever handles are attacked.
Technical Details:
• CL700 Grade 2 Cylindrical Key-in-Lever Locksets; CK700 Grade 2 Cylindrical Key-in-Knob Locksets.
• Reversible handing.
• Stainless steel and zinc dichromate steel for corrosionresistance.
• Independent return springs hold levers in correct horizontal position.
• Auxiliary deadlocking latch bolt prevents manipulation when door is closed.
CL8000
Certification
Dorma The DORMA CL700 and CK700 are U.L. and C.U.L listed, three hour fire rated.
Dorma Locksets with 1/2" throw latch bolts are listed for A label and lesser class single doors, 4'0" x 10'0" maximum.
Dorma The DORMA CL700 and CK700 are certified to the requirements of ANSI A156.2 Series 4000 Grade 2.
Dorma The CL700 meets A117.1 and ADA requirements for barrier-free accessibility
Dorma California State Fire Marshall (CSFM) approved, California State Reference code, 1989
Cylinders and Keying:
Dorma Unless otherwise specified, cylinders will be provided in DORMA standard keyway with two (2) nickel silver keys..
Dorma Optional patented key system available.
DormaRefer to separate DORMA Price List for full details and options such as master keying, retrofit cylinders and keyways, and small format interchangeable cores.
Finishes:
hammer Brass: 605 (Bright) or 606 (Satin).
hammer Bronze: 612 (Satin) or 613 (Dark Oxidized Satin).
hammer Chrome*: 626 (Satin).
hammer Stainless: 630 (Satin).
Hand Selector
dormahanding
FUNCTION SERIES OUTSIDE/INSIDE DESCRIPTION
Dummy Trim
One Side
CL701
dummy trim
• Used as pull or matching trim on pairs of doors.
CK701
Passage CL710
passage
• Latch bolt operated by trim from either side.
CK710
Privacy CL740
privacy

• Latch bolt operated by trim from either side.
• Outside trim locked by push button inside.
• Outside trim unlocked by emergency release from outside
• Outside trim unlocked by inside trim.
• Inside trim always unlocked.

CK740
Entry CL753
entry

• Deadlocking latch bolt operated by trim from either side except when outside trim locked by turn button inside.
• Key outside releases push button, unlocking outside trim,
except when inside button pushed and turned to keep outside trim locked.
• Operating inside trim releases push button, unlocking outside trim, except when inside button pushed and turned to keep outside trim locked.
• Inside button must be turned to unlock outside trim.
• Inside trim always operates latch bolt.

CK753
Classroom CL770
classroom
• Deadlocking latch bolt operated by trim from either side,except when outside trim locked from outside by key.
• When outside trim locked, latch bolt retracted by key outside.
• When outside trim is locked, latch bolt operated by inside trim.
CK770
Storeroom CL780
storeroom
• Deadlocking latch bolt retracted by key in outside trim.
• Deadlocking latch bolt operated by inside trim.
• Outside trim always inoperable.
CK780
The CL800 Series ANSI Grade 1 Heavy-Duty Cylindrical Locks are available in three lever trim designs
weelchair ADA compliant levers feature solid, cast handles with return to within 1/2" (12 mm) of the door face. • Available Finishes:
Brass: 605 (Bright) or 606 (Satin).
Bronze: 612 (Satin) or 613 (Dark Oxidized).
Chrome: 625 (Bright) or 626 (Satin).
TRIM DESIGN – LR
cl8000
TRIM DESIGN – LC TRIM DESIGN – LG
cl8000
CL8000
How to Order CL800/CK800 Series
Arhitectural Builders Supply sells the entire Dorma Lock Line . If you would like to order non-stock products please refer the chart below or call: 877-631-9411.
order
