Dorma CL600

Name: CL600 Series Cylindrycal Locks
Brand: Dorma
SKU: Dorma CL600
Price: 94.65 USD

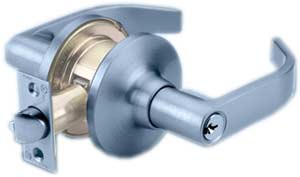

CL600 Series Cylindrycal Locks

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $94.65 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

DORMA’s CL600 Series Grade 2 tubular locksets provide the security, aesthetics, and dependability required for many applications.

These key-in-lever locksets are built with a tubular chassis for all applications where ANSI Standard A156.2 Series 4000 Grade 2 products are required.

To meet the aesthetic needs of your project, these versatile locks are available in lever trim designs - choose between the LR, LC, and in special order LG lever trim or the KR or KB knob trims.

Made in the USA.

CL600 Series Cylindrycal Locks

	Cut Sheet
	Product Brochure
	Technical Drawing
	Templates
	Installation Instruction

Recommended Applications

Schools and Universities

Hotels

Apartments

Hospitals and Nursing Homes

Churches

Municipal Buildings

Airports

Retail Complexes

Offices

Warehouses

Features

• All DORMA 600 Series locks feature advanced design concepts for reliability and are manufactured with select materials for extra durability.

• All 600 Series locks are easily adjustable to accommodate door thicknesses from 1-3/8" to 1-7/8" thick.

• DORMA 600 Series locks are easy to install in both wood or hollow metal doors with ANSI Standard A115 preparations for cylindrical locks.

Technical Details:

• CL600 Grade 2 Tubular Key-in-Lever Locksets;

• CK600 Grade 2 Tubular Key-in-Knob Locksets.

• Reversible handing.

• Lock chassis manufactured with selected steel and pressure cast zinc components for superior strength and corrosionresistance.

• Stainless steel, brass, or bronze strikes.

• Auxiliary deadlocking latch bolt prevents manipulation when door is closed.

• Latch bolt front manufactured from stainless steel, brass, or bronze, depending on the selected finish.

Certification

The DORMA CL600 and CK600 are U.L. and C.U.L listed, three hour fire rated.

The DORMA CL600 and CK600 are certified to the requirements of ANSI A156.2 Series 4000 Grade 2.

Locksets with 1/2" throw latch bolts are listed for A label and lesser class single doors, 4'0" x 10'0" maximum.

The CL600 meets A117.1 and ADA requirements for barrier-free accessibility.

California State Fire Marshall (CSFM) approved, California State Reference code, 1989 (formerly title 19).

Cylinders and Keying:

Unless otherwise specified, cylinders will be provided in DORMA standard keyway with two (2) nickel silver keys.

Refer to separate DORMA Price List for full details and options such as master keying and retrofit cylinders and keyways.

Finishes:

Brass: 605 (Bright), 606 (Satin), or 609 (Antique).

Bronze: 613 (Dark Oxidized Satin).

Chrome1: 625 (Bright) or 626 (Satin).

Stainless2: 629 (Bright) or 630 (Satin).

Hand Selector

FUNCTION	SERIES	OUTSIDE/INSIDE	DESCRIPTION
Dummy Trim One Side	CL601		• Used as pull or matching trim on pairs of doors.
	CK601
Passage	CL610		• Latch bolt operated by trim from either side.
	CK610
Privacy	CL640		• Latch bolt operated by trim from either side. • Outside trim locked by push button inside. • Outside trim unlocked by emergency release from outside • Outside trim unlocked by inside trim.
	CK640
Entry	CL651		• Deadlocking latch bolt operated by trim from either side except when outside trim locked by turn button inside. • When outside trim locked, key in outside trim unlocks turn button. • Outside trim unlocked by inside trim.
	CK651
Classroom	CL670		• Deadlocking latch bolt operated by trim from either side,except when outside trim locked from outside by key. • When outside trim locked, latch bolt retracted by key outside. • When outside trim is locked, latch bolt operated by inside trim.
	CK670
Storeroom	CL680		• Deadlocking latch bolt retracted by key in outside trim. • Deadlocking latch bolt operated by inside trim. • Outside trim always inoperable.
	CK680

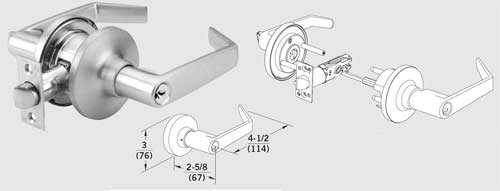

The CL600 Series ANSI Grade 2 Tubular Locks are available in three lever trim designs.
• Return springs hold levers in correct horizontal position.	• Available Finishes: Brass: 605 (Bright), 606 (Satin), or 609 (Antique) Bronze: 613 (Dark Oxidized Satin) Chrome: 625 (Bright) or 626 (Satin)
• ADA compliant levers feature solid, cast handles with return to within 1/2" (12 mm) of the door face.
TRIM DESIGN – LR

TRIM DESIGN – LC	TRIM DESIGN – LG

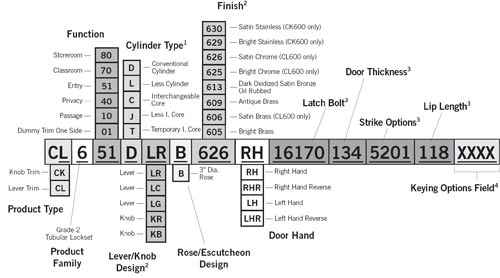

How to Order CL600/CK600 Series

Arhitectural Builders Supply sells the entire Dorma Lock Line . If you would like to order non-stock products please refer the chart below or call: 877-631-9411.

Default Configuration - CL651 D LRB 626 RH:

• Tubular Lever Locks

• 600 Series Grade 2

• Entry Function

• DORMA Component (Standard) 6-Pin Cylinder

• LR Lever Design

• 3" Diameter Rose

• Satin Chrome Finish

• Right Hand

• 2-3/8"– 2-3/4" Adjustable Backset Latch Bolt with 1/2" Throw

• Full Lip Strike

• 1-3/4" Thick Door
