Carlson 702R-YZ-D-MAR

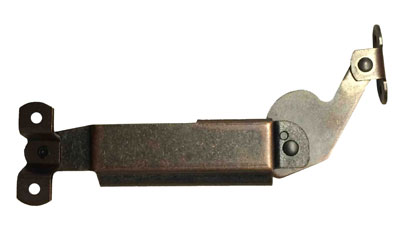

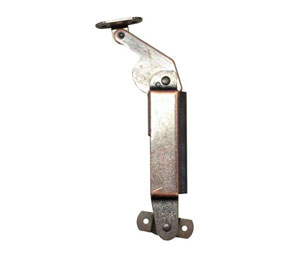

Name: Carlson 702R-YZ-D-MAR Yellow Zinc Spring Loaded Lift Mechanism with Delrin - Right Hand - Maroon - 1 Each
Brand: Carlson Capitol Mfg. Company
SKU: Carlson 702R-YZ-D-MAR
Price: 17.97 USD

Carlson 702R-YZ-D-MAR Yellow Zinc Spring Loaded Lift Mechanism with Delrin - Right Hand - Maroon - 1 Each

× This image is for a similar product but it will differ in size, color and/or other attributes.

Carlson 702R-YZ-D-MAR Yellow Zinc Spring Loaded Lift Mechanism with Delrin - Right Hand - Maroon - 1 Each

Price: $17.97 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 25-30 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


	Carlson 702R-YZ-D-MAR Yellow Zinc Spring Loaded Lift Mechanism with Delrin - Right Hand - Maroon - 1 Each

Self-balancing Lid Closure 702 RH/LH Series is designed to be mounted to left or right side of cabinet Keeps heavy lids from slamming shut Holds lid top open in any position Available with either Statuary Bronze or Yellow Zinc finish Features a solid brass enclosure slide, cover brackets riveted to cam, high quality springs available in different tensions for different lid sizes Screws are not included Type: Right Hand Style: Maroon Spring Includes delrin (makes the spring to be quiter when consistently used on heavy duty material) Overall Length: 6" Base material: Steel Rating in lbs: 45 to 55 inch - Torque rating = lid height (in inches) x lid weight (in pounds) x 1/2 Packing: 10 Each/YZx. Sold In: YZth broken and full YZx quantities. Price given per Each		Assembly of 700 Series Mounting Diagrams

Determine Spring Color Type in the height of the lid (the distance from front to back of the lid) and the weight of the lid: Height (inch): Weight (pounds): Note: Inch-pounds is found by multiplying one-half the distance from front to back of the lid times the weight of the lid.
