- Storeroom Lock and Single Cylinder Deadbolt Combination

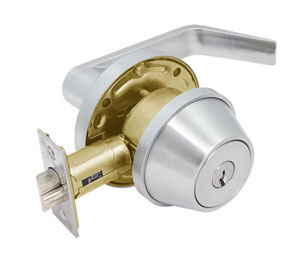

- XP Inside Lever with T360 Outside Deadbolt
- Storeroom function
- Finish: US5 - Satin brass plated, blackened, satin relieved, clear coated
- Explorer Series
- ANSI: A 156.2, F86
- Grade 2
- DOOR RANGES: 1 ¾" Standard (Optional Adapter Ring for 1 ⅜" thick doors)
- BACKSET: 2 ⅜" Standard, 2 ¾", 3 ¾" and 5" optional
- LATCH BOLT: ½" Throw solid brass, reversible for RH or LH applications. UL Listed.
- LATCH FACEPLATE: 2 ¼" x 1", square corner packed with ⅛" plastic filler for 1 ⅛" width
- STRIKE: ASA strike standard, "T" and full lip strike available on request
- Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles
- KEYING: 6-pin "C" keyway cylinder, 2 keys per lock. Keying as per individual job requirement.
- CYLINDER & KEYWAYS: 6 pin solid brass "C" keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
- Please contact us for availability and pricing for cylinders and keyways.
- EXPOSED TRIM: Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish
- TACTILE & LEAD LINING available upon request
- Use for offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings
- Image is for representative purpose only. The product will come in the finish you ordered.
|
