Brooks CP5

copy to clipboard

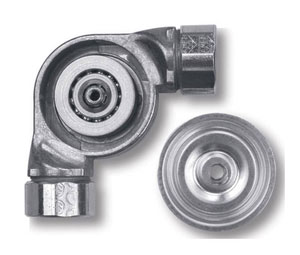

Brooks CP5 Compression Corner Pulley

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Brooks CP5 Compression Corner Pulley
Main ImageVideo Review Brooks CP5 Compression Corner Pulley
More from Brooks Equipment
Price: $10.98 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 24
Standard - ships in 2 business days.

Brooks has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:
CP5 Compression Corner Pulley

Standard Features:
  • High Temperature Ball Bearing Corner Pulley
  • Corner Pulleys are installed as part of the cable housing (pipe and conduit) and provides
    a 90 degree direction change with minimal loss of force and elimination of induced cable kinking
  • UL listed with the Amerex® system and UL classified for Ansul®, Kidde, PyroChem®, and Range Guard® systems, per NFPA 17 and 17A
  • Steel compression nuts eliminate stripping
  • The overall height and width of the unit is 2-5/8" x 2-5/8”
  • The thickness of the body is approximately 11/16”
  • Larger nuts that don't fall off while installing conduit
  • Ball bearing roller
  • Aluminum construction
  • Click for: Brooks Cross-Reference for Corner Pulleys TABLE

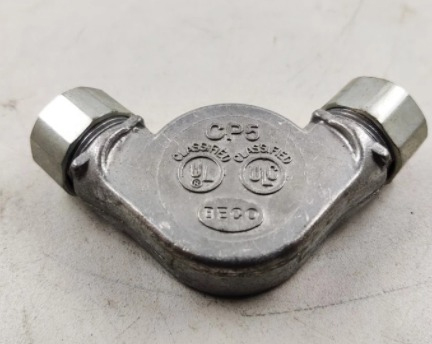

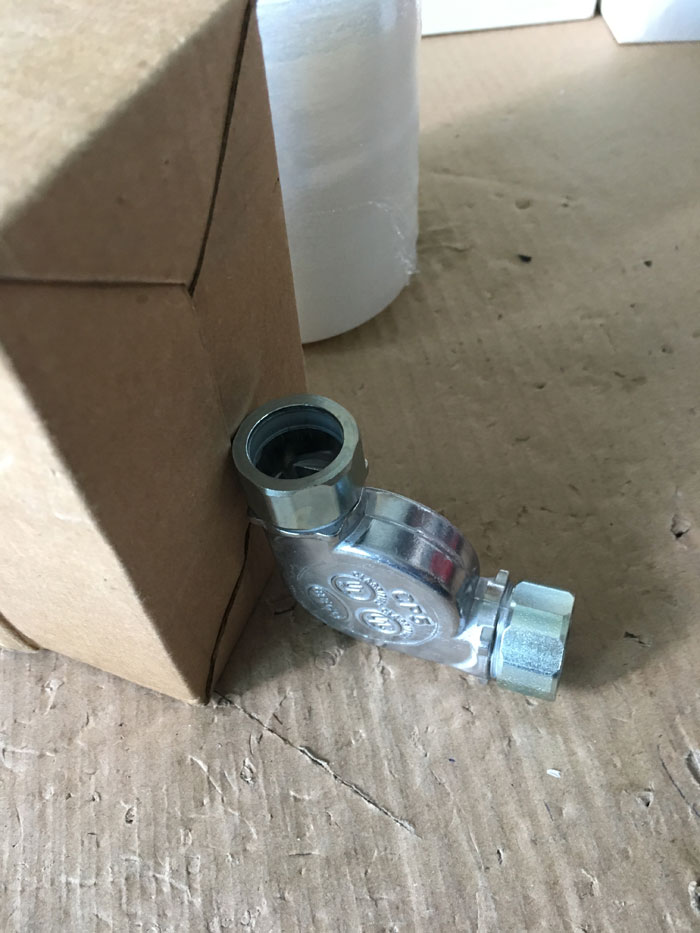

Customer Supplied Photos

Customer Supplied Photo
CP5 Compression Corner Pulley
(Click to Enlarge)

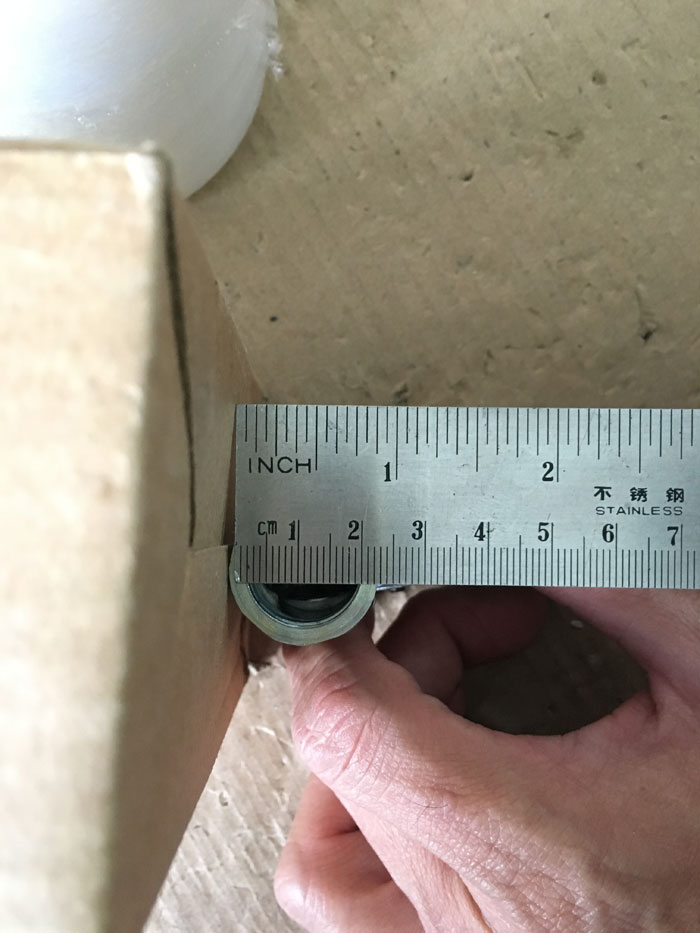

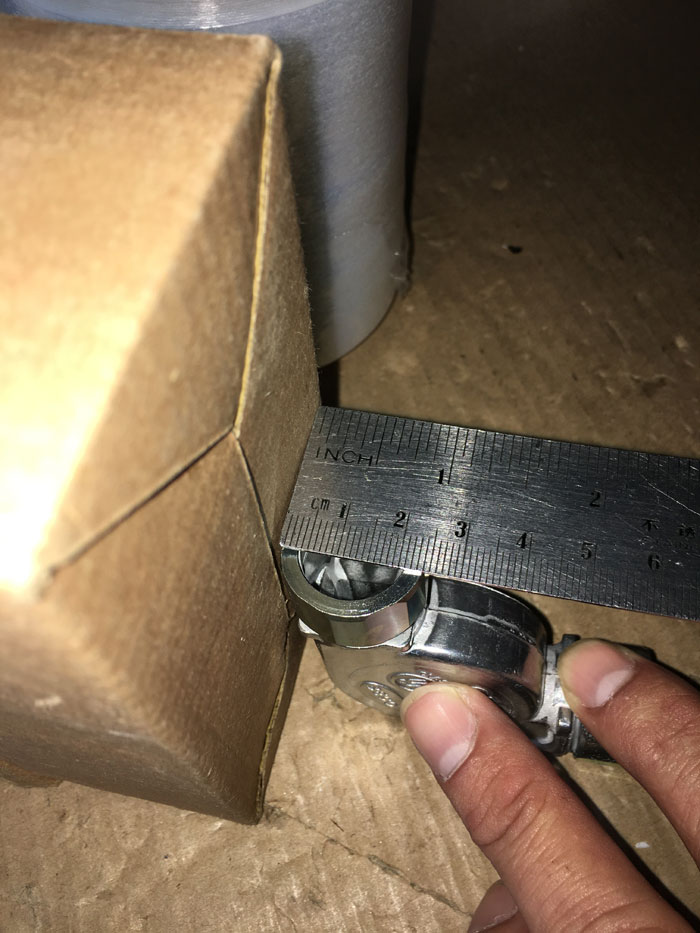

Dimensional Properties of Brooks CP5
Questions and Answers
Q: What is the conduit size for this? We are looking for 1/2" - 3/4"
A: The CP5 is indeed intended for 1/2" conduit.

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: What fire suppression system does this usually attach to? I have a hood with these fittings on it, but no tank or system is on it. Only thing that I have are the nozzles , pipes and other fittings. Trying to figure out if I need to buy a ansul system or something else. Thanks!
A: CP5 pulleys do indeed work with Ansul systems.

Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: I see the wheel on the Brooks CP2 corner pulley is tapered. Is the wheel on the Brooks corner pully CP5 tapered as well?
A: Yes indeed it is as seen in the photo here:

Click Here

(Required, used to email you once question is answered.)
