Bradley 899-016

Name: Bradley 899-016 Concealed or Exposed Block Wall Mounting Kit
Brand: Bradley
SKU: Bradley 899-016
Price: 62.87 USD

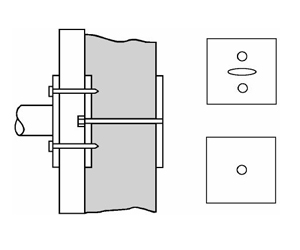

Bradley 899-016 Concealed or Exposed Block Wall Mounting Kit

× This image is for a similar product but it will differ in size, color and/or other attributes.

Bradley 899-016 Concealed or Exposed Block Wall Mounting Kit

Price: $62.87 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $150.00 minimum purchase of Bradley products or 15 business days for smaller orders. Bradley has an average lead time longer than industry standard but it is the opinion of absupply.net that the material from Bradley is of exceptional qualty and well worth the wait.

Additional Declarations - Bradley has a MAP or “minimum advertised price” policy. The price that you see listed here is the minimum price we are allowed to advertise however your price seen when you “add to cart” will be far lower.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Concealed or Exposed Block Wall Mounting Kit

Part for Bradley Series 800 - Mounting Kits and Anchoring Devices
Price per Flange

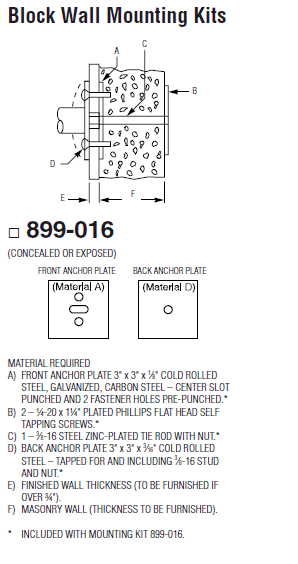

Material Required (items A-D included with 899-016 Kit):
A. Front anchor plate 3" x 3" x 1/8" cold rolled steel-center slot punched and 2 fastener holes pre-punched.
B. (2) 1/4-20 x 1-1/4" umbar-plated Philips oval head rollock tapping screws.
C. (1) 3/8-16 steel zinc-plated tie rod with nut.
D. Back anchor plate 3" x 3" x 3/16" cold rolled steel -tapped for and including 3/8-16 stud and nut.
E. Finished wall thickness (to be furnished if over 3/4") Additional Charge for thickness over 3/4".
F. Masonry wall (thickness to be furnished).
Installation:
Fasten to studs before wall is applied. Recess as required for flush finish wall application.
To attach grab bar, drill #2 (.221 diameter) holes
Attach with 1/4-20 x 1-1/4" umbar-plated Philips oval head rollock tapping screws

Questions and Answers

Q: We have a 12 inch thick wall - does that mean you're simply going to make the length of your part number 'C' adequate for that wall thickness?

Download File

A: Per Bradley:

Engineering The 899-016000, mounting kit is set to accommodate a wall 2-3/4" thick only. No other variations of this mounting kit have been made to date, customer should provide their own threaded rod.

I am awaiting a confirmation on my follow up question which is:

Would it be accurate to say in this scenario that the unit no longer carries a manufacturer's original warranty?

Q: The manufacturer has supplied the following information:

A: Bradley's warranty only applies to product that we offer / supply. If the customer requires different product they will need to obtain locally and the warranty would be carried by that supplier. The longer threaded rod is not covered by Bradley. If it would break then whoever the customer purchased it from holds the warranty.

I also asked the manufacturer to confirm the thread type of the threaded rod to which they provided

3/8 - 16
