Home > Bathroom Hardware > Toilet Tissue Dispensers with Napkin Disposal > Recess Mounted > Bradley 5942-69LH

Bradley 5942-69LH

Name: Bradley 5942-69 Combination Unit - Left Hand
Brand: Bradley
SKU: Bradley 5942-69LH
Price: 424.88 USD

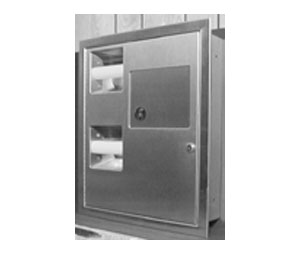

Bradley 5942-69 Combination Unit - Left Hand

× This image is for a similar product but it will differ in size, color and/or other attributes.

Bradley 5942-69 Combination Unit - Left Hand

Price: $424.88 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships in 10 business days.

Additional Declarations - Bradley has a MAP or “minimum advertised price” policy. The price that you see listed here is the minimum price we are allowed to advertise however your price seen when you “add to cart” will be far lower.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Description:
	Recess Mounted – Tissue Dispenser with Napkin Disposal
	Satin finish Stainless Steel
	Model 5942 – Recessed
	Model 5942-11 – Surface Mounted (projects 4-1/4")
	Left Hand - Toilet Tissue Roll on left when facing unit
	Replacement parts: P11-031 Molded Plastic Waste Receptacle
	Replacement Dispenser Spindles P10-571 can be ordered separately
	Right Hand Combination Unit can be ordered here: Bradley 5942RH

TOILET TISSUE & SEAT COVER DISPENSER/WASTE RECEPTACLE

Technical Data Sheet

CONSTRUCTION	FLANGE fabricated of type 304 (18-8) 22 gauge stainless steel with exposed surfaces in architectural satin finish. Flange of one piece seamless construction, 1" wide with 1/4" return.

	CABINET fabricated of type 304 (18-8) 22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with burr-free edges.
	DOOR fabricated of type 304 (18-8) 18 gauge stainless steel with full length piano hinge and tumbler lock keyed like other Bradley units.
	PUSH FLAP DOOR fabricated of type 304 (18-8) 22 gauge stainless steel with exposed surfaces in architectural satin finish. Self-closing, with heavy duty stainless steel piano hinge.
	WASTE CONTAINER fabricated of leakproof molded plastic. 1.0 gal. capacity.
	SPINDLES of polyethylene, non-removable by user.
CAPACITY	Toilet Tissue Dispensers-Two standard core toilet tissue rolls through 5-1/4" in diameter.
OPERATION	Hinged access door permits servicing of components from one side.
INSTALATION	Requires rough wall opening 15-3/8"W x 18-1/4"H x 4-1/4"D. Top of wall opening 4'0" above finished floor. For Barrier-free applications, top of wall opening 2'8" above finished floor. Secure with mounting screws (included) at holes provided.
GUIDE SPECIFICATION	Recessed combination unit shall include toilet tissue dispenser and napkin disposal, and be fabricated of type 304 (18-8) heavy gauge stainless steel with seamless exposed surfaces in satin finish. Door and back panel shall be 18 gauge. Door shall have piano hinge and tumbler lock.
Overall dimensions: 17-1/8"W x 20"H x 4-1/2"D.
