Bradley 5412

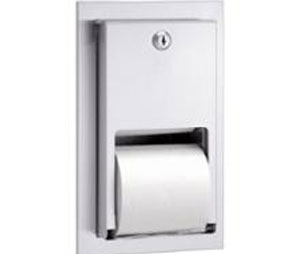

Name: Bradley 5412 Recessed Mounted Dual Roll Toilet Tissue Dispenser - Satin Stainless Steel
Brand: Bradley
SKU: Bradley 5412
Price: 138.60 USD

Bradley 5412 Recessed Mounted Dual Roll Toilet Tissue Dispenser - Satin Stainless Steel

× This image is for a similar product but it will differ in size, color and/or other attributes.

Bradley 5412 Recessed Mounted Dual Roll Toilet Tissue Dispenser - Satin Stainless Steel

Price: $138.60 USD

Comments (Optional)

ADD TO CART

Quick Ship - up to 10 units available to ship in 1 business day with $150.00 minimum purchase of Bradley products

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day with $150.00 minimum purchase of Bradley products or 5 business days for smaller orders.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Description:
	Recessed Mounted
	Satin finish Stainless Steel
	Dual Roll
	ADA Compliant
	Replacement Dispenser Spindles P10-571 can be ordered separately
	Replacement Dispenser Spindles P10-551 can be ordered separately

Recessed Mounted Dual Roll Toilet Tissue Dispenser - Satin Stainless Steel

Technical Data Sheet

CONSTRUCTION	CABINET 22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with burr-free edges surfaces in architectural satin finish. Welded construction with burr-free edges.

	FLANGE 22 gauge stainless steel with exposed surfaces in architectural satin finish. Flange of one-piece seamless construction, 1" wide with ¼" return.
	SERVICE DOOR 22 gauge stainless steel with exposed surfaces in architectural satin finish and tumbler lock keyed like other Bradley units. Hinged at bottom.
SPINDLES of molded polyethylene.
CAPACITY	Two standard core toilet tissue rolls through 5" in diameter.
OPERATION	Cabinet holds two rolls of 4½" x 5" standard core toilet tissue, one above the other. When first roll is used up, fresh roll automatically drops down for use. Unique retaining mechanism prevents use of spare roll until first roll is completely used. Spindles non-removable by user. Hinged door permits access to storage compartment for servicing of unit.
INSTALATION	Verify all rough-in dimensions prior to installation. Requires rough wall opening 57⁄8"W x 105⁄8"H x 4"D. Secure to framing with mounting screws (not included) at holes provided. Mounting Kit #899-027 available from Bradley. Visit bradleycorp.com for more information. Shim at screw points as required.
GUIDE SPECIFICATION	Recessed dual roll toilet tissue dispenser shall be heavy gauge satin finish stainless steel and hold two standard core toilet tissue rolls.
Overall dimensions: 55⁄8"W x 103⁄8"H x 55⁄16"D

Video Detail Page

Questions and Answers

Q: Hello! The bottom roll (with toilet paper) will not flow easily. It keeps getting stuck and stopping and little sheets of paper are getting pulled off and making a mess. I blew out the dust from both sides and this helped slightly. Any other suggestions to get the bottom spindle flowing freely? The top one works fine. It happens with both spindles. Thank you.

A: I would suggest contacting Bradleys technical support:

Click Here

but in my experience the unit is damaged and needs replacement.
