Bradley 3A05-1136

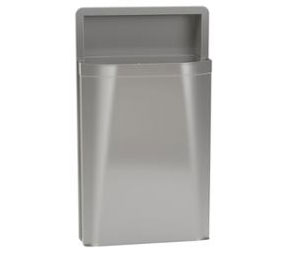

Name: Bradley 3A05-1136 Diplomat Waste Receptacle 18 gal. - Surface Mounted
Brand: Bradley
SKU: Bradley 3A05-1136
Price: 769.94 USD

Bradley 3A05-1136 Diplomat Waste Receptacle 18 gal. - Surface Mounted

× This image is for a similar product but it will differ in size, color and/or other attributes.

Bradley 3A05-1136 Diplomat Waste Receptacle 18 gal. - Surface Mounted

Price: $769.94 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships in 10 business days.

Additional Declarations - Bradley has a MAP or “minimum advertised price” policy. The price that you see listed here is the minimum price we are allowed to advertise however your price seen when you “add to cart” will be far lower.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Description:
	Surface Mounted
	Satin finish Stainless Steel
	18 gallon waste capacity
	Projects 8¹¹⁄₁₆"
	Replacement collar 3A05 semi-recessed: A10-008

WASTE RECEPTACLE

Technical Data Sheet

CONSTRUCTION	CABINET 0.030-inch/22-ga. (0.76 mm) stainless steel with exposed surfaces in architectural satin finish. Welded construction with seamless corners and burr-free edges.

	FLANGE0.030-inch/22-ga. (0.76 mm) stainless steel with exposed surfaces in architectural satin finish. One-piece seamless construction, 1" wide with 1/4" return.
	WASTE CONTAINER0.036-inch/20-ga. (.92mm) stainless steel with exposed surfaces in architectural satin finish. All welded construction. Secured to cabinet with tumbler lock keyed like other Bradley units. Front of cabinet has matching curvature to other Bradley Diplomat washroom accessories.
	CAPACITY 12 gal. (1.6 cu. ft.), or optional large capacity container - 18 gal. (2.5 cu. ft.)
OPERATION	Receptacle removable for servicing by unlocking waste container. Operates with less than 5 lbs. of force.
INSTALATION	Verify all rough-in dimensions prior to installation. Recessed unit requires rough wall opening 15-3⁄4"W x 29-3⁄16"H x 4"D. Secure to framing with mounting screws (not included) at holes provided. Shim at screw points as required.
GUIDE SPECIFICATION	[12 gal./1.6 cu. ft.] [18 gal./2.5 cu. ft.] capacity waste receptacle in [recessed] [semi-recessed] [surface-mounted] wall cabinet with self-trimming flange. Waste receptacle face formed with contemporary contours, radii, and finish matching related accessories in manufacturer's designer series. Waste receptacle removable from cabinet with keyed tumbler lock. Universal keying. Formed from stainless steel sheet with satin finish on exposed surfaces, fully welded, with seamless corners and burr-free edges: cabinet and flange 0.036-inch/20-ga. thick, waste receptacle 0.036-inch/20ga. thick.
Overall dimensions: 17-1⁄8"W x 30-5⁄8"H x 8-11/16"D
