Bradley 2484-10

copy to clipboard

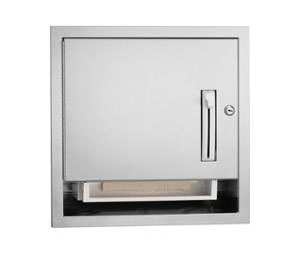

Bradley 2484-10 Roll Paper Towel Dispenser - Semi_Recessed

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Bradley 2484-10 Roll Paper Towel Dispenser - Semi_Recessed
More from Bradley
Price: $888.04 USD
Ships From
Comments (Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days.
Additional Declarations - Bradley has a MAP or “minimum advertised price” policy. The price that you see listed here is the minimum price we are allowed to advertise however your price seen when you “add to cart” will be far lower.
+ Add to My Wish List

1-844-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Description:
bullet
 Semi-Recess Mounted
bullet
 Lever operated
bullet
 Roll towels
bullet
 Satin finish stainless steel with flange
bullet
 For 8 or 9 inch wide standard roll paper towel stock
bullet
 Vandal resistant hinged locking door
bullet
 Dispenser lever requires less than 5 pounds force to operate
PAPER TOWEL DISPENSER
CABINET
22 gauge stainless steel with exposed surfaces in satin finish. All welded construction.
DOOR
 18 gauge stainless steel with exposed surfaces in satin finish. Door secured with full length stainless steel piano hinge and tumbler lock keyed like other Bradley accessory items.
TOWEL DISPENSER
 Furnished (manufactured by others).
CAPACITY
One standard core 8" or 9"W x 800'L roll paper towel roll.
OPERATION

Towel dispenser delivers preset length of towel (2-1/2", 4" or 5" per stroke) by depressing lever. Operates with less than 5 lbs. of force.
INSTALATION
 Verify all rough-in dimensions prior to installation. Recessed unit requires rough wall opening 15-1/2"W x 15-1/2"H x 10-1/2"D (Semi-recessed unit requires 3-1/2"D). Secure to framing with mounting screws (included) at holes provided. Shim at screw points as required.
GUIDE SPECIFICATION
 Recessed orsemi-recessed towel dispenser shall be fabricated of stainless steel with exposed surfaces in satin finish. Cabinet door shall have full length piano hinge and be secured with tumbler lock. Towel dispenser shall be activated with less than 5 lbs. of force and have the capacity to hold one standard core 8" or 9"W x 800'L paper towel roll
OVERALL DIMENSIONS
 17-1/8"W x 17-1/8"H x 10-1/2"D
