Home > Hinges & Pivots > Pivots > Horizontal Spring Pivots > Medium Duty > Jamb Mount > Hold Open > Bommer 7812-600

Bommer 7812-600

Name: Bommer 7812-600 Horizontal Spring Pivot with Jamb Bracket-Medium Duty-Hold Open-Steel Trim-Primed for Painting
Brand: Bommer
SKU: Bommer 7812-600
Price: 152.94 USD

Bommer 7812-600 Horizontal Spring Pivot with Jamb Bracket-Medium Duty-Hold Open-Steel Trim-Primed for Painting

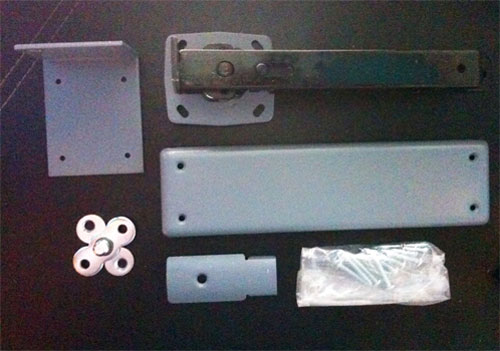

× This image is for a similar product but it will differ in size, color and/or other attributes.

Bommer 7812-600 Horizontal Spring Pivot with Jamb Bracket-Medium Duty-Hold Open-Steel Trim-Primed for Painting

Video Review Bommer 7812-600 Medium Duty Horizontal Spring Pivot- Hold Open Prime Coat Finish

Price: $152.94 USD

Comments (Optional)

ADD TO CART

Low Inventory - This product is discontinued
but there are 15 left in stock
and ready for shipment. Order today.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Medium Duty Horizontal Pivot with Jamb Bracket - Primed for Painting

ANSI K82193
Malleable Iron and Steel Mechanism
Steel Trim
With Jamb Bracket
Anti-Friction Bearing
Double Acting
Hold Open at Approximately 85 Degrees
Adjustable Spring Tension
Door Thickness: 1-3/8" to 1-3/4"
Maximum Door Width: 3'0"
Maximum Door Weight: 90 lbs
Note: Specifications of product in image may differ from product being sold. Read description carefully.

Template

Instructions

Additional Images

Top Pivot 7890
(Included in Price)

Bommer 7800 Series Horizontal Type Spring Pivots

Product #	Floor Plate Included	Jamb Bracket Included	Side Plate Material	Adjustable Spring Tension	Hold Open Feature	Model	Door Thickness	Maximum Door Width	Maximum Door Weight	Cut Sheet	Video Review
Bommer 7801	Yes	No	Steel	No	Yes	Light Duty	1-3/8" to 1-3/4"	3'0"	35 lb	7801	7801 7801-633
Bommer 7802	Yes	Yes	Steel	No	Yes	Light Duty	1-3/8" to 1-3/4"	3'0"	35 lb	7802	7802-633 7802-651 7802-652
Bommer 7811	Yes	No	Steel	Yes	Yes	Medium Duty	1-3/8" to 1-3/4"	3'0"	90 lb	7811	7811 7811-600 7811-603 7811-632 7811-633 7811-646 7811-652
Bommer 7812	Yes	Yes	Steel	Yes	Yes	Medium Duty	1-3/8" to 1-3/4"	3'0"	90 lb	7812	7812-600 7812-601 7812-646
Bommer 7813	Yes	No	Steel	Yes	No	Medium Duty	1-3/8" to 1-3/4"	3'0"	90 lb	7813	7813-601 7813-652
Bommer 7814	Yes	Yes	Steel	Yes	No	Medium Duty	1-3/8" to 1-3/4"	3'0"	90 lb	7814	7814-633
Bommer 7813HD	Yes	No	Steel	Yes	No	Heavy Duty	1-3/8" to 1-3/4"	3'0"	150 lb	7813HD	7813HD-600 7813HD-601 7813HD-639 7813HD-640 7813HD 652
Bommer 7814HD	Yes	Yes	Steel	Yes	No	Heavy Duty	1-3/8" to 1-3/4"	3'0"	150 lb	7814HD	7814HD-600
Bommer 7821	Yes	No	Brass	Yes	Yes	Medium Duty	1-3/8" to 1-3/4"	3'0"	90 lb	7821	-
Bommer 7822	Yes	Yes	Brass	Yes	Yes	Medium Duty	1-3/8" to 1-3/4"	3'0"	90 lb	7822	-
Notes: The 7813HD & 7814HD heavy duty pivotfits into the same cut out at bottom ofdoor and uses the same Bommer 7890 Top Pivot as the 7801, 7802, 7813 and 7814 for easy retro fit. The 7890 top pivot, side plates and back plates are included in all pivot sets. The Bommer 7805 Jamb Bracket is also included with models 7802, 7812, 7814, 7814HD and 7822. 7890 Top Pivot Assembly 7805 Jamb Bracket

Bommer 7800 and why the 1-1/2" radius on pivot stile is important

Video Review of Bommer 7812-600 Medium Duty Horizontal Spring Pivot- Hold Open Prime Coat Finish

Video Detail Page
