Bommer 7802-652

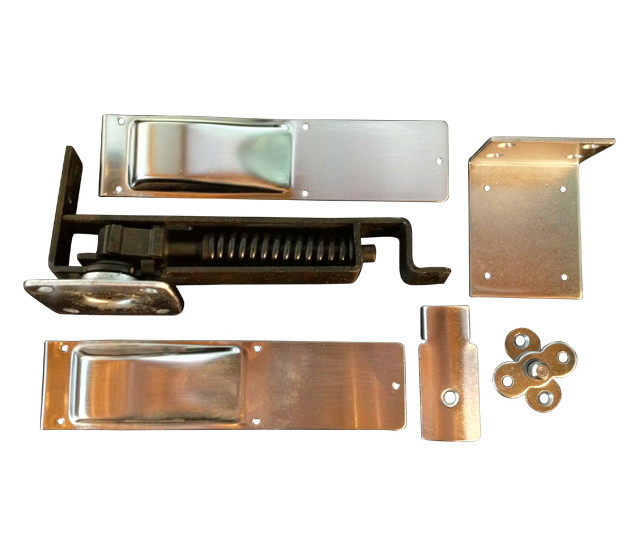

Name: Bommer 7802-652 Horizontal Spring Pivot with Jamb Bracket-Light Duty-Hold Open-Steel Trim-Satin Chrome Plated
Brand: Bommer
SKU: Bommer 7802-652
Price: 72.89 USD

Bommer 7802-652 Horizontal Spring Pivot with Jamb Bracket-Light Duty-Hold Open-Steel Trim-Satin Chrome Plated

× This image is for a similar product but it will differ in size, color and/or other attributes.

Bommer 7802-652 Horizontal Spring Pivot with Jamb Bracket-Light Duty-Hold Open-Steel Trim-Satin Chrome Plated

Video Review Bommer 7802-652 Horizontal Spring Pivot Light Duty with a Jam Bracket Satin Chrome Finish

Price: $72.89 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 1

In Stock (Minimums Apply):

Landrum, SC Warehouse Qty: 1

Quick Ship - up to 0 units available to ship in 0 business days. If there is no inventory listed immediately above this message qualified as “Immediate” then please contact our office prior to placing an order.

For quantities beyond the "In Stock" above, the item(s) ships in 2-3 business days. Bommer has announced they are ceasing operations and only continuing to fill orders based on remaining stock and availability of raw materials.

Additional Declarations - If there is an indication of inventory available above, this means at this precise time we still have remaining stock.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Light Duty Horizontal Pivot with Jamb Bracket - Satin Chrome

ANSI K82193
Malleable Iron and Steel Mechanism
Steel Trim
With Jamb Bracket
Anti-Friction Bearing
Double Acting
Hold Open at Approximately 85 Degrees
Non-Adjustable Spring Tension
Door Thickness: 1-3/8" to 1-3/4"
Maximum Door Width: 3'0"
Maximum Door Weight: 35 lbs


Cut Sheet	Instructions

Additional Images

Top Pivot 7890
(Included in Price)

Bommer 7800 Series Horizontal Type Spring Pivots

Product #	Floor Plate Included	Jamb Bracket Included	Side Plate Material	Adjustable Spring Tension	Hold Open Feature	Model	Door Thickness	Maximum Door Width	Maximum Door Weight	Cut Sheet	Video Review
Bommer 7801	Yes	No	Steel	No	Yes	Light Duty	1-3/8" to 1-3/4"	3'0"	35 lb	7801	7801 7801-633
Bommer 7802	Yes	Yes	Steel	No	Yes	Light Duty	1-3/8" to 1-3/4"	3'0"	35 lb	7802	7802-633 7802-651 7802-652
Bommer 7811	Yes	No	Steel	Yes	Yes	Medium Duty	1-3/8" to 1-3/4"	3'0"	90 lb	7811	7811 7811-600 7811-603 7811-632 7811-633 7811-646 7811-652
Bommer 7812	Yes	Yes	Steel	Yes	Yes	Medium Duty	1-3/8" to 1-3/4"	3'0"	90 lb	7812	7812-600 7812-601 7812-646
Bommer 7813	Yes	No	Steel	Yes	No	Medium Duty	1-3/8" to 1-3/4"	3'0"	90 lb	7813	7813-601 7813-652
Bommer 7814	Yes	Yes	Steel	Yes	No	Medium Duty	1-3/8" to 1-3/4"	3'0"	90 lb	7814	7814-633
Bommer 7813HD	Yes	No	Steel	Yes	No	Heavy Duty	1-3/8" to 1-3/4"	3'0"	150 lb	7813HD	7813HD-600 7813HD-601 7813HD-639 7813HD-640 7813HD 652
Bommer 7814HD	Yes	Yes	Steel	Yes	No	Heavy Duty	1-3/8" to 1-3/4"	3'0"	150 lb	7814HD	7814HD-600
Bommer 7821	Yes	No	Brass	Yes	Yes	Medium Duty	1-3/8" to 1-3/4"	3'0"	90 lb	7821	-
Bommer 7822	Yes	Yes	Brass	Yes	Yes	Medium Duty	1-3/8" to 1-3/4"	3'0"	90 lb	7822	-
Notes: The 7813HD & 7814HD heavy duty pivotfits into the same cut out at bottom ofdoor and uses the same Bommer 7890 Top Pivot as the 7801, 7802, 7813 and 7814 for easy retro fit. The 7890 top pivot, side plates and back plates are included in all pivot sets. The Bommer 7805 Jamb Bracket is also included with models 7802, 7812, 7814, 7814HD and 7822. 7890 Top Pivot Assembly 7805 Jamb Bracket
