Bommer 7112-633

copy to clipboard

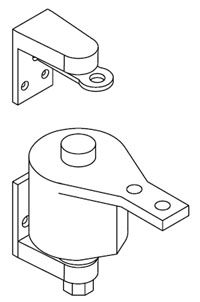

Bommer 7112-633 Spring Pivot-Surface Type-Steel Base-Adjustable Tension-Satin Brass Plated

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Bommer 7112-633 Spring Pivot-Surface Type-Steel Base-Adjustable Tension-Satin Brass Plated
Main ImageVideo Review Bommer 7112-652 Spring Pivot-Surface Type-Steel Base-Adjustable Tension-Satin Chrome Plated
More from Bommer
Price: $953.43 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 1
In Stock (Minimums Apply):
Quick Ship - up to 0 units available to ship in 0 business days. If there is no inventory listed immediately above this message qualified as “Immediate” then please contact our office prior to placing an order.
For quantities beyond the "In Stock" above, the item(s) ships in 2-3 business days. Bommer has announced they are ceasing operations and only continuing to fill orders based on remaining stock and availability of raw materials.
Additional Declarations - If there is an indication of inventory available above, this means at this precise time we still have remaining stock.

1-844-809-3667

Sales
Technical Support
Product Description:

bommer logo Adjustable Spring Tension Steel Surface Pivot - Satin Brass

  • ANSI K63201
  • Cast Steel Base
  • Double Acting
  • Ball Bearing
  • Adjustable Spring Tension
  • Maximum Door Width: 36"
  • Maximum Door Thickness: 2-1/2"
  • Maximum Door Weight: 75 lbs
  • Flat Door Bracket: For Doors Not Less than 1" Thick
  • Flat Jamb Bracket: 1-1/4" Wide
  • Tension Pin for the 7100, 7300 Series: Bommer F7110-10-1-603
  • Tension Rod for the 7100, 7300 Series: Bommer F1480
  • Standard Packaging per Box
    • (1) Pivot
    • (1) Jamb Bracket
    • (1) Door Bracket
    • (1) 7890 Top Pivot Assembly with Jamb Bracket
    • (8) No. 12 x 1-1/4" Flat Head Wood Screws
    • (2) No. 10 x 1" Flat Head Wood Screws

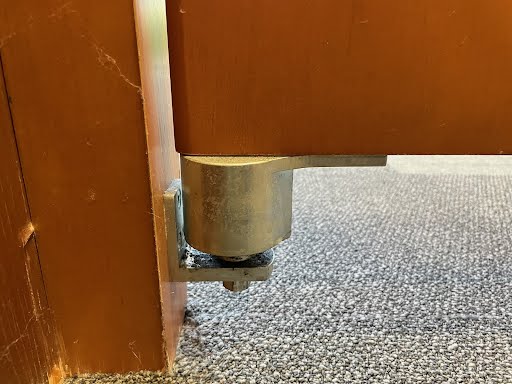

Customer Supplied Photo

(Click to Enlarge)
Questions and Answers
Q: Please send the instructions for this model -
A: The installation instructions can be review here:

Download File

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

(Required, used to email you once question is answered.)
