Bommer 3024-5-1.125-601

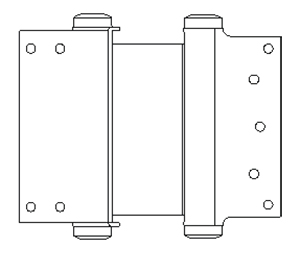

Bommer 3024-5-1.125-601 Double Acting Spring Hinges, 3000 Series, 5" Clamp Flange, 1-1/4" Door Thickness, Steel, Black

• Box Clamp Flange Type
• ANSI K81111
• Non-Template
• Non-Handed
• Material: Steel
• Finish: Black
• Door Thickness: 1-1/4"
• Minimum Door Height: 6'8"
• Maximum Door Weight
  • With 2 Hinges: 65
  • With 3 Hinges: 93
• Maximum Door Width
  • With 2 Hinges: 2'8"
  • With 3 Hinges: 3'0"
• Box clamp type door flange is attached to door with through bolts and nuts
• Jamb flange is surface applied to jamb
• Clamp flanges are not adjustable. Thickness of the door must be selected.
• Packed with through bolts and machine screws
• Permits doors to open in either direction and automatically return to closed position
• Provides maximum protection for doors subject to normal abuse of lift trucks due to resiliency of spring support and shock absorbing reaction of flexible mounting
• Adjustable spring tension permits power and speed adjustment
• No hanging strip is needed
• Replacement Bommer Tension Pin: F86035
• Note: Specifications of product shown may be different than the one being sold. Read description thoroughly.
