Blum BP71B9580

Name: Blum BP71B9580 95° CLIP Top BLUMOTION Soft-Close, Thick Door Hinge, Full Overlay, Dowel
Brand: Blum
SKU: Blum BP71B9580
Price: 7.52 USD

Blum BP71B9580 95° CLIP Top BLUMOTION Soft-Close, Thick Door Hinge, Full Overlay, Dowel

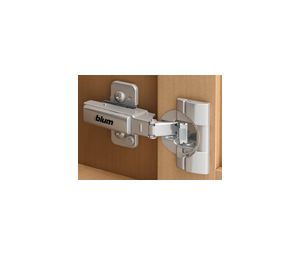

× This image is for a similar product but it will differ in size, color and/or other attributes.

Blum BP71B9580 95° CLIP Top BLUMOTION Soft-Close, Thick Door Hinge, Full Overlay, Dowel

Price: $7.52 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Vernon Hills, IL Warehouse Qty: 2421

Elk Grove Village, IL Warehouse Qty: 390

Kansas City, MO Warehouse Qty: 312

Middletown, OH Warehouse Qty: 739

For quantities beyond the "In Stock" above, the item(s) ships in 10-15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

[email protected]

Technical Support

[email protected]

Product Description:

Blum BP71B9580 95° CLIP Top BLUMOTION Soft-Close, Thick Door Hinge, Full Overlay, Dowel

95° CLIP Top BLUMOTION Soft-Close, Thick Door Hinge
BLUMOTION is integrated into the hinge cup
Deactivation switch for small/light doors
For door thickness up to 30mm (1-3/16")
Boring distance range 3mm to 7mm
Compatible with existing CLIP mounting plates and hinge arm cover caps
Dowel hinges must be inserted with knock-in tool or universal insertion ram
Opening Angle: 95°
Overlay: Full
Fixing Type: Dowel
Closing Type: Soft-Closing
Boring Pattern: 45mm
Box Quantity: 50 Each
Case Quantity: 250 Each
MPN Code : 09349543
Packing: 50 hinges per box and 250 hinges per case. Sold in both broken and full box.
Unit of measure is EA and Boxes. Each box contains 50 hinges. When you are purchasing a quantity of 1 you will get one hinge. When you are purchasing a quantity of 50 you will get one box which contains 50 hinges. Price is for one hinge.
