Blum BP39C355B22
Blum BP39C355B22

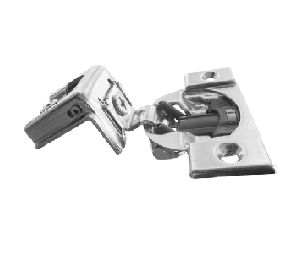

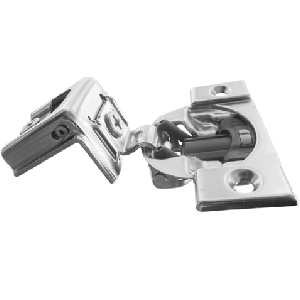

Blum BP39C355B22 39C Soft-Close Hinge, 1-3/8" Overlay, Screw-On, Wrap-Around - Nickel-Plated Finish
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
4.73 USD
Comments
(Optional)
In Stock Ready for Shipment
ADD TO CART
In Stock (Minimums Apply
):
Vernon Hills, IL Warehouse Qty: 1273
Kansas City, MO Warehouse Qty: 106
Middletown, OH Warehouse Qty: 382
For quantities beyond the "In Stock" above, the item(s)
ships in 10-15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $35.00 worth of product from Blum to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
[email protected]
Technical Support
[email protected]
Product Description:
Blum BP39C355B22 39C Soft-Close Hinge, 1-3/8" Overlay, Screw-On, Wrap-Around - Nickel-Plated Finish
COMPACT BLUMOTION 39C Soft-Close Hinge
BLUMOTION soft close integrated into the hinge cup
Deactivation switch for small/light doors
Overload safety feature
One-piece wraparound hinge
+/- 1/8" height adjustment
+/- 3/32", - 1/32" cam depth adjustment
Dowel hinges must be inserted with knock-in tool or COMPACT insertion ram
Opening Angle: 110°
Overlay:1-3/8"
Fixing Type: Screw-On
Boring Pattern: 45 mm
Closing type: Soft-Closing
Mounting Type: Wrap-Around
Type: One-Piece Assembly
Cup Depth: 12.7mm
Side Adjustment: +/-1.6 mm
Box Quantity: 50 Each
Case Quantity: 300 Each
MPN Code: 26295336
Packing: 50 hinges per box and 300 hinges per case. Sold in both broken and full box quantities.
Unit of measure is EA and Boxes. Each Box contains 50 hinges. When you are purchasing a quantity of 1 you will get one hinge. When you are purchasing a quantity of 50 you will get one box which contains 50 hinges. Price is for one hinge.
