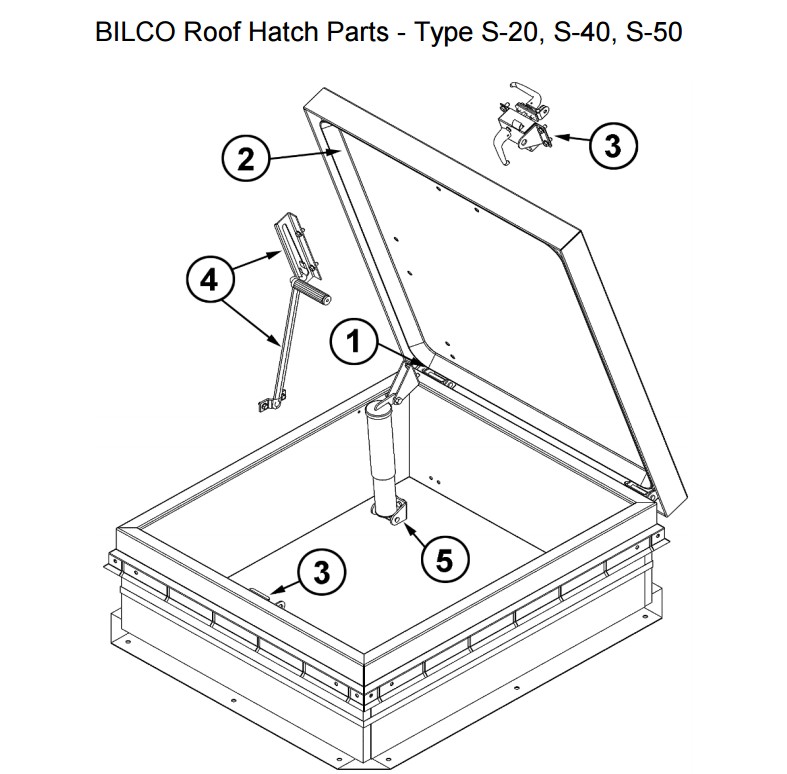

Q: Hi I need all the parts for a Bilco S-20 Galvanized Roof Hatch 36"x30"
A: The following are links to all of the parts that can would comprise a complete Hardware set for the bill collectors 20 rough patch in a 36 by 30 inch size that you have asked for.
Here is a link to the replacement shock or lifting mechanism which is the Bilco RPRS180 Replacement 180lb Lifting Mechanisms for Roof Scuttle
Click Here
Here is a link to the latch handle and lock body assembly which ic the Bilco RPRS7 Replacement Zinc Plated - Chromate Sealed Lock Assembly 4# - 4-5/8" Shaft
Click Here
Here is a link to the replacement hold open track and arm assembly which is the
Bilco RPRS3445P 14 1/4" Left Hand Hold Open Arm
Click Here
Here is a link to the gas getting that would be used on this roof hatch which is the Bilco RPRS4026 EPDM Gasket - Sold per Lineal Foot
Click Here
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful - please consider following us on Twitter
Click Here
or liking our page on Facebook
Click Here
Q: inside dimensions of s 20
A: The frame opening width of the S-20 Bilco roof hatch is 30" wide and 36" deep as defined at the link to it's technical drawing as seen here:
Download File
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -
please consider following us on Twitter
Click Here
or liking our page on Facebook
Click Here
Thank you for your consideration.
Q: Where can I find the installation instructions
A: These are the installation instructions:
Download File
for the Bilco S-20 Type S Roof Hatch - Ladder Access - 36" x 30" - Galvanized Steel
Q: Is this product thermally broken?
A: Indeed yes, the
Bilco S-20 Type S Roof Hatch - Ladder Access - 36" x 30" - Galvanized Steel
is available as a thermally broken unit and is the Bilco S-50TB Type S Thermally Broken Roof Hatch - 36" x 30" - Aluminum Cover and Curb
as seen here:
Click Here

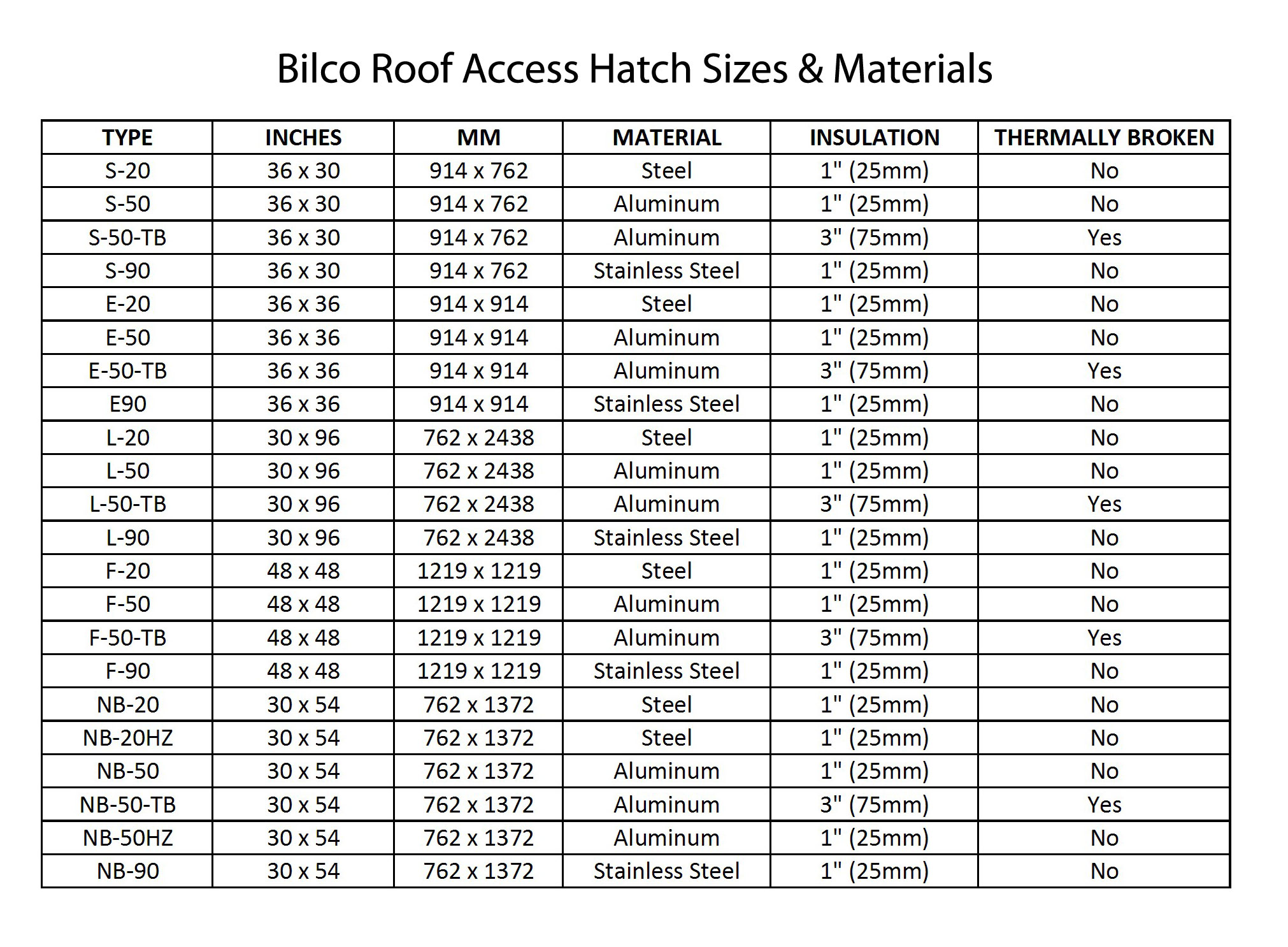

Thermally broken roof hatches feature R-20+ insulation and a frame and cover design that minimizes heat transfer between interior and exterior metal surfaces. The result is a product that resists harmful condensation and provides superior energy efficiency. The Thermally Broken design is available in all standard BILCO single leaf sizes (S, E, NB, L, F, GS*) and special single leaf sizes are available upon request. (Patent Pending)
Q: installation instructions for the S-20 in a wood frame building with 24" centers on the roof trusses?
A: Ths installation of your unit will not deviate from the Technical Drawing as seen here:
Download File
however ordering you a special size would be required and based on my calculation you would need an order size of a 21" wide unit. What specifically can we do to assist at this time?
Q: What would be the original lifting mechanism equipment originally provided on the Bilco S-20 model of roof hatch?
A: The original lifting mechanism from the Bilco S-20 would be the
Bilco RPRS180 Replacement 180lb Lifting Mechanisms for Roof Scuttle
as seen here:
Click Here
Q: What is the Rough opening
A: The dimensional properties for the Bilco S-20 Type S Roof Hatch - Ladder Access - 36" x 30" - Galvanized Steel
can be reviewed at the link to the templates as seen here:
Download File
Q: What is the Rough opening for the Bilco Type S Single Leaf Roof Hatch 36" x 30"
A: The technical drawing that you can use for the preparation of your installation of the Bilco S-20 Type S Roof Hatch - Ladder Access - 36" x 30" - Galvanized Steel can be reviewed here:
Click Here
Q: Hello, I am spec’ing your product for my project, the Bilco Model Type S-10 and I wanted to verify a clearance. I have a question, the roof hatch is next to a CMU wall, is this Okay or does it need to be a certain distance from the CMU wall as seen here:
View Image
?
A: It’s either an S-20 Steel or S-50 Alum.
We recommend at least 12” in case they want to add the rail system. It’s really up to the local code.
Q: Does Bilco make a standard roof hatch with a cover which is capable of supporting a 65 psf live load?
A: Please tell me the size of roof hatch that you would like along with the composition of the base material.
Q: Is the S-20 Roof Hatch available with a Baked Enemel or Powder Coat Finish, as an Architect is requesting? And how much extra does it coast?
A: According to the manufacturer powder coating is an available option. Please give us a color that you would like it powder-coated and we will work with the manufacturer on a quote

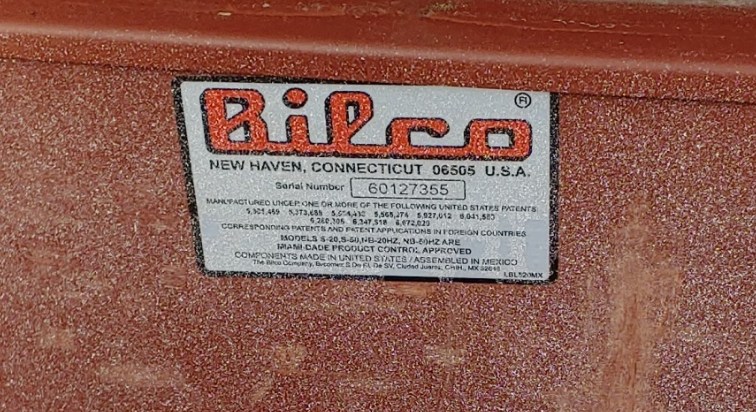

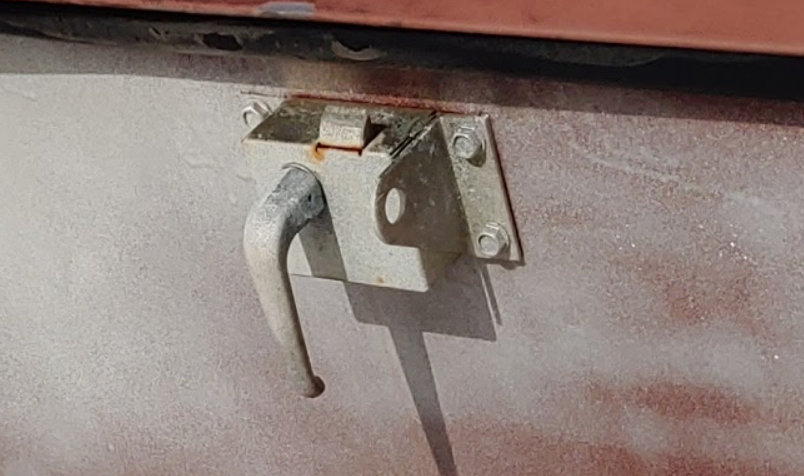

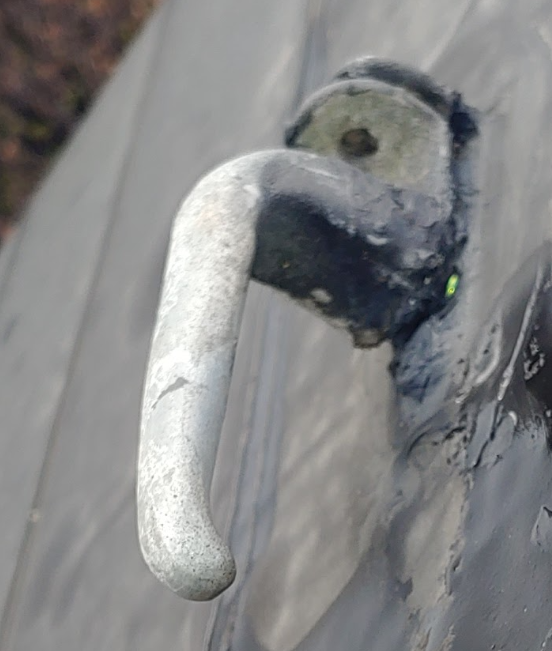

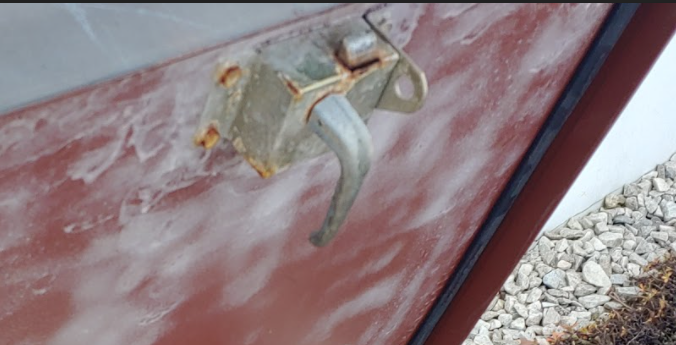

Q: Hello, I was doing a little research and I came across your site. Thanks for all the excellent information and well designed site. I wanted your suggestions for part(s) to help repair the multiple rain leaks and rust I am seeing on the roof hatch latches. There are 14 roof hatches and two or three have developed leaks and there is clear rust in the interior latch assemblies. I assume the exterior gaskets are cracked, over torqued or maybe missing. These were all installed about 5 years ago. Images here:
View Image
View Image
View Image
View Image
Would you replace the cover hasp gasket or are there additional parts needed to prevent the leaks? I will order the gaskets or other parts you recommended. Thanks, Todd Lee
A: After reviewing your photographs - I would clearly replace the
Bilco SD30 Handle Assembly - Gasket - Cover Hasp
as seen here:
Click Here
I would also purchase a handful of the
Bilco SD3-Y Bolt Only for RPRS7 Replacement Zinc Plated - Chromate Sealed Lock Assembly
as seen here:
Click Here
Though the rough hatch lid appears to have need tarred over with roofing element, I would anticipate installing the factoryoriginal gasket to cure the leaking problem.
Q: Is this product fire rated?
A: No the
Bilco S-20 Type S Roof Hatch - Ladder Access - 36" x 30" - Galvanized Steel
is not fire rated though fire rated versions of hatches can be seen at the link here:
Click Here
Q: For the S-20, what is the weight of just the steel cover? I assume the 183lbs is the entire assembly.
A: The weight of the lid alone is not a published value and I agree he 183lbs is the entire assembly. Is there a particular reason to know the weight of the lid? If you need replacement lifting mechanisms please email us the serial number located on the sidewall of the unit.
