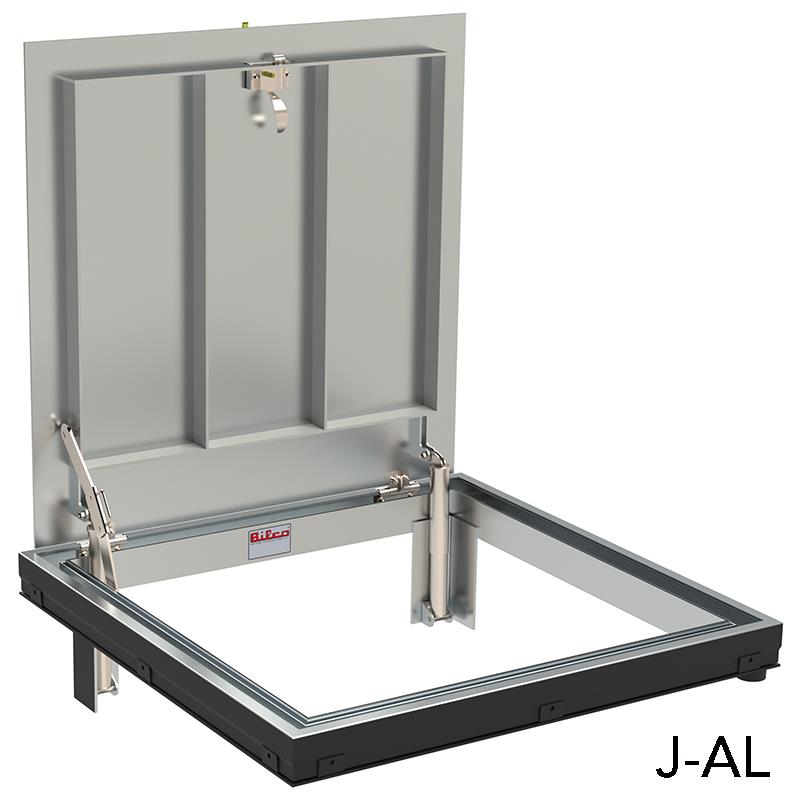

Bilco J-AL 3x3 FP

• Single Door Floor Door
• Size: 36" x 36" (914mm x 914mm)
• Material: Aluminum
• Stainless Steel Slam Lock
• With Fall Protection Grating System

Specifications

• Material: 1/4" Aluminum
• Cover: Diamond-pattern tread plate reinforced for 300 psf (1464 kg/m2) live load
• Frame: Extruded aluminum channel frame with bend down anchor tabs around the perimeter. A 1-1/2" (38mm) drain coupling is welded under the frame for a pipe connection to a dry well or disposal system
• Hinges: Heavy forged Type 316 stainless steel hinges with 1/4" (6 mm) type 316 stainless steel hinge pins
• Latch: Type 316 stainless steel slam lock with fixed interior handle and removable exterior turn/lift handle. Latch release is protected by a flush, gasketed, removable screw plug
• Lift Assistance: Compression spring operators enclosed in telescopic tubes. Automatic hold-open arm with release handle automatically locks cover(s) in the open position
• Performance Ratings: Complies with UL 790 Class A (burning brand test).
• Finish: Mill Finish aluminum with a bituminous coating applied to the exterior of the frame
• Hardware: Type 316 stainless steel throughout

Features

• Constructed with corrosion resistant materials to provide many years of trouble free, dependable service
• Heavy-duty construction and positive latching mechanism help to prevent unauthorized access
• Engineered with lift assistance for smooth, easy one-hand door operation,regardless of size
• Standard Type 316 Stainless Steel Hardware
• Automatic hold-open arm locks the cover in the open position to ensure safe egress
• Engineered with lift assistance for smooth, easy one-hand door operation,regardless of size
• Constructed with corrosion resistant materials to provide many years of trouble free, dependable service
• Exclusive 25-year warranty
• Available in a number of standard and special sizes to satisfy any requirement

Fall Protection Grating System Features

• Grating System provides a permanent means of fall protection under access doors
• Exceeds OSHA fall protection requirements
• Aluminum grating with a safety-yellow powder coat paint finish for added durability
• Equipped with a stainless steel automatic hold-open device that securely locks the panel in the full open position
• Stainless steel hardware for corrosion resistance
• Supplied with a padlock hasp for added security
