Q: Do you have any CAD details for your roof hatches?
A: Sorry - no .dwg type files available that I can get my hands on. I hope this will help:
Download File
Please let us know if there is anything else we can help with.
Q: What is the cost and lead time of this custom aluminum hatch jd-alh20 96" x 60"?
A: We have completed the quote for the custom / special made to order item and have forwarded a quote to your email address.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: Hi, We are designing a couple of military facilities which require bullet resistant roof hatches. Do you manufacture those? If not, do you know of a manufacturer who does? Thank You,
A: these folks should be able to help:
Click Here
Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

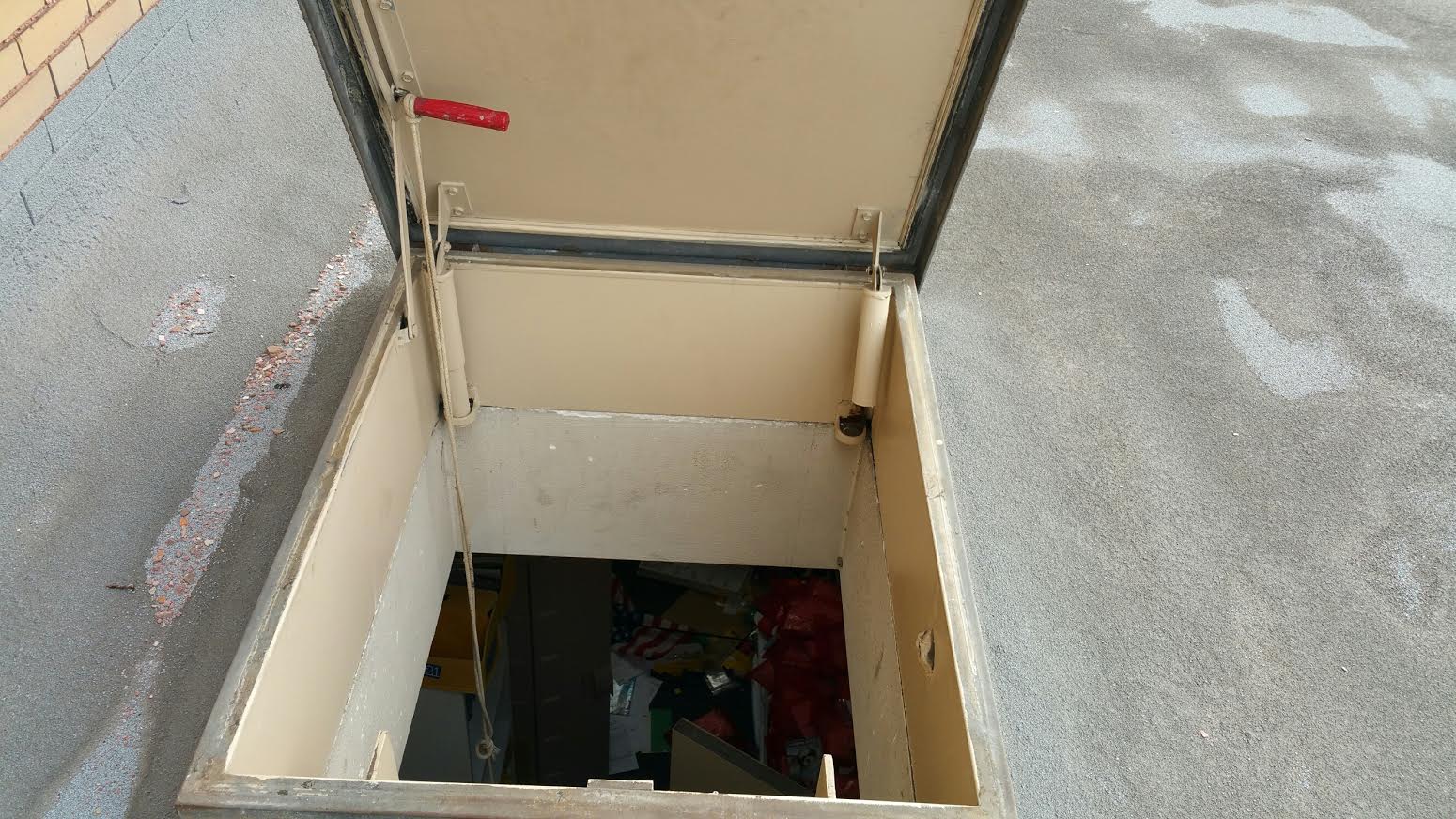

Q: See attached per my live chat this morning and the photo as seen here:
View Image
Need to replace both struts. Let me know! Thanks!
A: And may I ask how do you know that? Do you see that from a tag on the side of the unit and if yes can you tell me the serial number if it is still there.
This inspection will allow was to know exactly what the bill of materials was when this unit was manufactured - and the reason for being able to pull the bill of materials is so that we eliminate all of the potential guesswork involved in which lifting mechanism you will require.
Q: We could not find any serial number on the hatch. It has been painted a few times and if anything was there it has since been covered up. I have attached a few more pictures we took while looking today.
View Image
View Image
View Image
View Image
View Image
A: The additional information you have provided has allowed me to sort out what you need.
hat is a steel painted hatch so you would need the RPRS2SS-E (180# springs) as seen here:
View Image
and to fit in the rounded bottom bracket (that is a REAL old hatch)
a small modification must be made. The bottom tube has a tab welded to the bottom which extends beyond the tube. In order to insert this into the rounded bracket the tab must be nipped of for ground down.
The replacement tube old style shocks are in stock and can ship immediately.
Q: I have a Bilco roof hatch with serial number 60073484. Can you tell me what lifting mechanism I require?
A: Indeed yes - your unit requires a quantity of 2 - Bilco RPRS180 Replacement 180lb Lifting Mechanisms for Roof Scuttle
as seen here:
Click Here
