Baldwin 6401 LENT

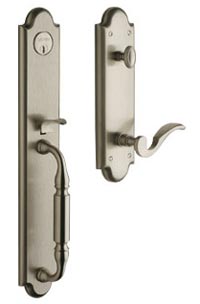

Name: Baldwin 6401 Devonshire LH Tubular Lockset
Brand: Baldwin
SKU: Baldwin 6401 LENT
Price: 921.30 USD

Baldwin 6401 Devonshire LH Tubular Lockset

× This image is for a similar product but it will differ in size, color and/or other attributes.

Baldwin 6401 Devonshire LH Tubular Lockset

Price: $921.30 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Product Details

Left Hand Devonshire Handle set
5108 Lever Supplied
Packed as a complete set
Emergency exit locksets can be installed. Call for more information.


Template		Instructions

Function

From exterior: Thumb piece operates handleset latch; key operates deadbolt.

From interior: Emergency exit feature operates both deadbolt and latch with turn of interior lever or knob.

Hand Chart

If your door swings out, you'll need a reverse handing set. Please call our sales department to discuss options.

Minimum Door Stile Width

Backset	Door Stile Width
2-3/8"	4-1/4"
2-3/4"	4-5/8"

Mechanical Features

Solid forged brass: Entrance handle, cylinder collar, knob, rose, and turnpiece are manufactured of solid forged brass for maximum strength and durability.
Emergency exit: Inside knob/lever retracts latch and deadbolt simultaneously, providing quick exit.
Double cylinder: Requires a key to lock or unlock doors from the outside and the inside. Usually used on doors with lites.
Ease of operation: Short rotation hub facilitates ease of operation; rotate interior knob/lever only 28º to retract the latch bolt.
Installation: Estate Tubular locksets are designed for easy installation in standard pre-bored wood or metal doors. An adapter aligns the latch with the trim. Graphic instructions make installation fast.
Fully reversible: Accommodates most door conditions and facilitates installation.
Door thickness: Locksets accommodate a door thickness of 1-3/4" (44mm). Conversion kit available for 2.0" (51mm) and 2-1/4" (57mm) thick doors.
Case: Deadbolt and latch case are formed of steel for strength. Most interior working parts are made of solid brass or steel for maximum strength and smooth operation.
Backset: Adjustable backset 2-3/8" (60mm); 2-3/4" (70mm) latch and deadbolt supplied standard.
Faceplate: Deadbolt and latch are supplied with a 1" (25mm) faceplate.
Strike: Deadbolt is furnished with a specially designed reinforcing strike constructed of high-grade steel for ultimate strength and durability. The strike is installed with (2) 3" (76mm) security jamb screws and a dust box. The security strike is covered with an armored front to conceal the fasteners. The 3" screws securing the inside face of the double-cylinder deadbolt resist tampering and guard against theft. Latches are supplied standard with a box strike. (Other strikes are available at an additional charge.)
Distance between latch and deadbolt (CTC): Lockset accommodates 5.5" (140mm) center-tocenter dimension only.
Bolt: Deadbolt and latch bolt constructed of solid brass. Deadbolt has 1" (25mm) throw when extended and a hardened steel insert for maximum protection and security. Latch bolt has a .5" (13mm) throw when extended to engage the door jamb fully.
Cylinder: Cylinder supplied with five-pin keying.
Keys: Designed with a 1-1/4" (32mm) wide bow surface to facilitate use by disabled and physically challenged people.
Important: Emergency exit entrance locksets are designed for use with Estate knobs or levers.

Finishes

	003 - Lifetime Brass
	040 - Satin brass
	050 - Satin brass and black (oxidized, relieved, and oil rubbed)
	102 - Oil-rubbed bronze (dull, slightly oxidized)
	112 - Venetian bronze (relieved and matte lacquered)
	150 - Satin nickel plated (satin polished brass, oxidized, relieved, and lacquered)
	151 - Antique nickel, dull (nickel plated brass, oxidized, relieved, and lacquered)
	260 - Polished chromium (highly polished, plated on brass)
