ASI 9020

Name: ASI 9020 Toddler Safety Seat
Brand: ASI
SKU: ASI 9020
Price: 144.29 USD

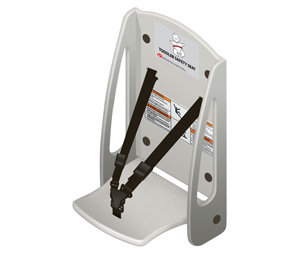

ASI 9020 Toddler Safety Seat

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $144.29 USD

Comments (Optional)

In Stock (Minimums Apply):

Yonkers, NY Warehouse Qty: 37

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI 9020 Toddler Safety Seat

This solid plastic seat, mounted on the inside of the toilet partition, either on the door or panel, allows parents to take a toddler into the stall with them.
When used properly wit hthe 3-point harness, it securely holds a child up to 110 lbs (50 kg).

Operation

Toddler Safety Seat is securely mounted (by others) on the wall of a dressing room or partition of a restroom stall.
Open unit folds to 5-1/2" (140) when seat is manually lifted to close for storage, and requires less than 1.9 ft² (1765 cm²) of wall space either open or closed.
High-density polyethylene is easy to clean and resists fungal and bacterial growth.
Toddler Safety Seat can support static loads of 50 lbs (22.7 kg).
Unit is operable with one hand with less than 5 lbs (22.2N) of force while not requiring any tight grasping, pinching, or twisting of the wrist.
Safety harness is easily adjustable by user for any baby size and latch securely resists opening until released by opposing finger pressure by adult caretaker/parent.
Each side shoulder strap is independently attached to the belt clasp to avail user of simple and secure engagement without having to lift a loop strap over the baby’s head.
User should always attend baby at all times.

Installation

1. Remove the unit from the shipping container and check for any freight damage. Identify the location for installing the Toddler Safety Seat. Hold the unit in place and make sure there is adequate clearance for the seat to open.
2. The unit has four (4) mounting holes provided in the back. Mark the four (4) mounting holes locations on the mounting surface consistent with the position determined in step 1. Drill appropriately sized pilot and/or clearance holes for hardware to be used.
3. Install unit on mounting surface using hardware appropriate for the site conditions (provided by others).
4. Install mounting hole plug covers (supplied) to conceal fasteners after installation.
