ASI 9017

Name: ASI 9017 Recess Mounted Stainless Steel Vertical Baby Changing Station - Stainless Steel
Brand: ASI
SKU: ASI 9017
Price: 1665.44 USD

ASI 9017 Recess Mounted Stainless Steel Vertical Baby Changing Station - Stainless Steel

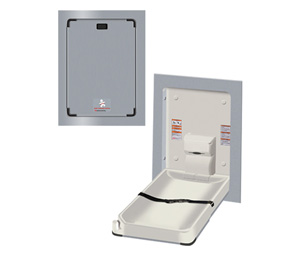

× This image is for a similar product but it will differ in size, color and/or other attributes.

ASI 9017 Recess Mounted Stainless Steel Vertical Baby Changing Station - Stainless Steel

Price: $1,665.44 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Yonkers, NY Warehouse Qty: 28

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

ASI 9017 Recess Mounted Stainless Steel Vertical Baby Changing Station - Stainless Steel

For a more upscale appearance, this vertical station has a door facing and collar made from 18 gauge 304 stainless steel.
The unit itself is constructed of FDA-approved non-porous plastic and can support a static load of 110 lbs. (50 kg).
Overall Size: 28-1/4" x 35-5/32" x 3/8" (718 x 994 x 10 mm)

Cut Sheet

Operation

Unit platform is shaped to keep a child restrained from rolling out of the bed.
Unit is easily opened and closed by user with one hand in any location and handle cavity is provided on door face for preferred use.
Unit is operable with less than 5lb of force (22.2N) while not requiring any tight grasping, pinching or twisting of the wrist.
Bed liner/towel dispenser presents liners or towels for user hygiene and convenience.
Dispenser lid is provided for sanitary protection and ease of loading of wipes or liners.
Safety strap is easily adjustable by user for baby size and Sure-Lock latch securely resists opening until released by opposing finger pressure by adult caretaker/parent.
Liners/towels are easily replenished by service personnel as required.

Installation

Installation instructions along with operation and maintenance manual are provided with each unit.
Unit is recess mounted using hardware supplied through concealed mounting holes.
Hardware kit supplied has fasteners suitable for metal or wood stud walls in dry locations and general hollow wall construction where adequate substrate strength is obtained.
Fasteners and anchors for masonry walls are not provided.
Mount unit in properly framed RWO using four (4) № 10 x 1-1/2” (M5x38) self-tapping pan head screws through side holes.
Wall reinforcement must be suitable to sustain transfer of maximum unit loading.
For alternate rear holes mounting see installation instructions packed with unit.
Alternate suggested mounting where wall depth and framing reinforcement permits is to use four (4) 3/8” x 2” (M10x51) lag screws (or other fasteners appropriate for wall conditions, not supplied) through mounting holes in rear wall of cabinet.
Use washers and mounting hole plug covers provided to conceal fasteners after installation.
