ASI 8156

Name: ASI 8156 Specimen Pass Box with Extension Sleeve & Flange - Recessed
Brand: ASI
SKU: ASI 8156
Price: 456.49 USD

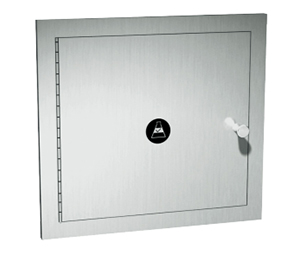

ASI 8156 Specimen Pass Box with Extension Sleeve & Flange - Recessed

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $456.49 USD

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Sales

Technical Support

Product Description:

ASI 8156 Specimen Pass Box with Extension Sleeve & Flange - Recessed

Specimen Pass Box with Extension Sleeve & Flange
Cabinet & door 18 gauge Flange 22 gauge both type 304 stainless steel
Heavy duty Stainless Steel multi-staked 3/16" diameter [Ø5] piano hinge
Mounting: Recessed
Construction: Type 304 Stainless Steel
Finish: Satin
Overall Dimensions: 13-1/4" x 12-3/4" x 6" (337 x 324 x 152 mm)
Rough Wall Opening (RWO) required is 11-1/2" [292] W x 11" [279] H x 9-1/2" [241] D minimum

Operation

Specimens are deposited through one side of unit and are retrievable on other side when first door is returned to closed position.
Drip tray is removable for cleaning.

Installation

Mount unit in Partition Cutout (PCO) or through walls ranging in thickness from 5-1/2" [140] to 9-7/8" [251]
Fixed flange is secured first through four (4) dimpled mounting holes that accommodate #10 self-threading Philips flat head (or oval head) screws (supplied).
Adjustable flange is then secured to opposite side of partition in same manner
For compliance with 2010 ADA Accessibility Standards, install unit with centerline of door pulls at 48" [1219] maximum Above Finished Floor (AFF) if clear floor access is provided or 46" (1168) maximum Above Finished Floor (AFF) if side reach over an obstruction (i.e. vanity) is only provided.
For general utility install unit with centerline of doors 54" (1372mm) AFF.
