Product Description:
ASI 54" x 36" Horizontal Grab Bar
Concealed Mounting
Tubing: 1-1/4" (32mm) diameter x 18 gauge (1.2mm)
Flange: 3" (76 mm) diameter, 1⁄2" (13 mm) deep
Three (3) tamper resistant 1/4-28 stainless steel hex socket set screws supplied for each flange
Satin stainless steel
Cut Sheet

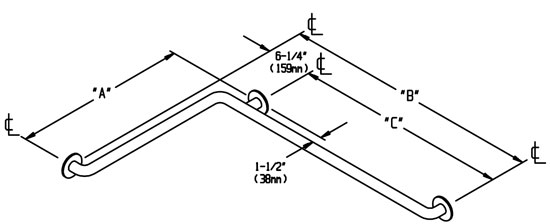

Dimensions
Click for larger image
A
B
C
36" (914mm)
54" (1372mm)
47-3/4 (1213mm)
Strength
Designed to meet and exceed ADA requirements as published in CABO/ANSI A117.1-1992 and CFR 28 Part 36, Federal Register Vol. 56 No. 144, 26 July 1991, section 4.21.3 and section 4.26.3
Adequate strength to support a load of 250 pounds (113.4kg).
Mounting to the wall is a critical part of the system to meet this requirement.
To withstand the shear, tension or pull-out, and torsion loads generated by the maximum loading, the fastener system must be adequately sized.
Installation
Tenon plates are secured to wall with a 1/4" bolt (by others) through an elongated slot that provides 1" (25mm) vertical range and 3/16" (5mm) horizontal range for fitting adjustment.
Flanges are then fitted over tenon plates and secured by tightening the hex socket set screws (provided).
For compliance with ADA Accessibility Guidelines unit should be installed so that the center line of the grab bar is 33" (840mm) minimum above finished floor (AFF) to 36" (915mm) maximum AFF.
Appropriate anchoring and backing must be provided in accordance with local building codes or as specified prior to wall finishing.
Anchors are available from ASI and must be specified separately (see below).
Optional Mounting Kits
3902 Dry Wall Anchors
#12 x 2-1/2" long self-tapping Phillips pan head screws
3912 Metal Partition Anchors
For installing through 1/2" - 1" metal partitions
3/16′′ (5mm) thick stainless steel plate x 3′′ (76mm) dia., with a 1/4-20 x 1-1/2" (38mm) long threaded steel rod welded on with a washer and nut to suit
