ASI 20692 48

Name: ASI 20692 48" Roval Surface Mounted Shelf
Brand: ASI
SKU: ASI 20692 48
Price: 170.92 USD

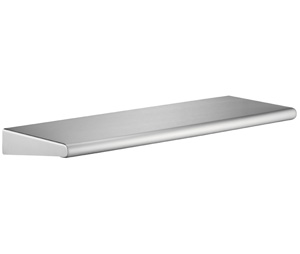

ASI 20692 48" Roval Surface Mounted Shelf

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $170.92 USD

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI 20692 48" Roval Surface Mounted Shelf

Surface Mounted Shelf
Width: 6"
Length: 48"
Fabricated of 18 gauge type 304 stainless steel
The 6” wide shelf has a ¾” (19mm) gently radiused edge that uniquely complements the curves of the ASI Roval™ Collection

Operation

Shelf is stable and stationary after proper and secure mounting to adequate wall reinforcement or stud structure
Shelf is suitable for wet (self-contained) or dry materials storage

Installation

Unit is surface mounted on wall or partition using (#C) № 12AB-14 or № 12BP-14 (M6) self-tapping pan head screws or other appropriate fasteners (by others) through (#C) keyholes and one (1) locking hole provided in rear support bracket
Ensure that adequate in wall blocking or other reinforcement is provided (by others) to support shelf and intended loading weight
For compliance with ADA Accessibility Guidelines unit should be installed so that shelf top is between 48" (1219) maximum above finished floor (AFF) and 32" (813) minimum AFF
Typical for general utility is 42" (1067) AFF or 18" (457) above washbasin
