ASI 204692A-9

Name: ASI 204692A-9 Surface Mounted Automatic Roll Paper Towel Dispenser and Removable Waste Receptacle
Brand: ASI
SKU: ASI 204692A-9
Price: 1277.16 USD

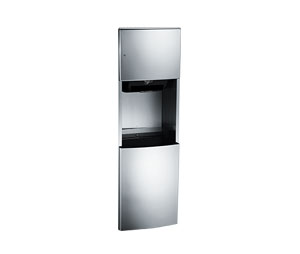

ASI 204692A-9 Surface Mounted Automatic Roll Paper Towel Dispenser and Removable Waste Receptacle

× This image is for a similar product but it will differ in size, color and/or other attributes.

ASI 204692A-9 Surface Mounted Automatic Roll Paper Towel Dispenser and Removable Waste Receptacle

Price: $1,277.16 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

ASI Surface Mounted Automatic Roll Paper Towel Dispenser and Removable Waste Receptacle

Fabricated of 18 gauge type 304 stainless steel.
17.8 gal. (67.2 L) removable waste receptacle.
Sizes: 17 3/8" W, 56 1/16" H, 10" D

Cut Sheet

Operation

Towels are dispensed one length at a time automatically when hands are placed in sensor zone until supply is depleted.
Owner predetermines length of towel dispensed by making selections on three (3) three-position switches for length, delay, and economy.
Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position
Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit.
Dispenser supply is replenished, batteries are replaced and waste receptacle is emptied manually on cycles determined by maintenance needs.
LED indicates sensing and battery condition.
Locking compartment door and receptacle retainer prevents unauthorized access and roll removal.

Installation

Provide adequate in-wall reinforcement (by others) in drywall construction to hold mounted unit in-service after wall is finished.
Provide appropriate anchors (by others) to suit wall and field conditions for installation into walls other than new drywall.
Mount unit in wall recess using № 10 self-tapping screws (by others) through concealed mounting holes provided.
Power is supplied by code approved cable or conduit (by others) to RWO at location indicated on diagram and terminated in utility duplex outlet box (provided) inside cabinet.
Power required is 110-240VAC, 50/60 Hz protected by a 15A circuit breaker (by others) for low voltage adapter that draws ¼ Amp.
Power adapter for dispenser unit is supplied cabled and plugged into dispenser and is plugged into duplex outlet (by others).
For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines install unit so that top edge of towel dispenser opening is 48" (1219) maximum above finished floor (MAX AFF) only if clear floor reach access is provided.
Be advised that local codes may require mounting so that top of towel dispenser opening is 40" (1016) MAX AFF (e.g. California UBC/Title 24).
For general utility install unit with top of towel dispenser opening between 49" and 56" (1245 to 1422) AFF.
