ASI 20469-9

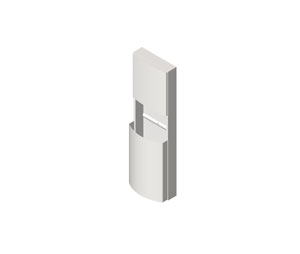

Name: ASI 20469-9 Surface Mounted Paper Towel Dispenser and Removable Waste Receptacle
Brand: ASI
SKU: ASI 20469-9
Price: 1013.02 USD

ASI 20469-9 Surface Mounted Paper Towel Dispenser and Removable Waste Receptacle

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $1,013.02 USD

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Surface Mounted Paper Towel Dispenser and Removable Waste Receptacle

Dispenses 600 C-fold or 800 multi-fold paper towels.
14.8 gal. (56 L) removable waste receptacle.
Door made of 18 gauge type 304 stainless steel with a heavy-duty 3/16" staked piano hinge.
Sizes: 17 5/8" W x 56 5/15" H x 5 3/4" D

Operation

Towels are self-feeding upon user manual demand until supply is depleted.
Unit may be reloaded with a partial load in-place and will continue to feed properly.
Towels are replenished and waste receptacle is emptied manually on a cycle determined by maintenance needs.
Locked door and waste receptacle prevents unauthorized access or removal.

Installation

Surface mount unit on wall using №10 self-tapping flat head screws (by others) through concealed mounting holes provided.
For compliance with ADA Accessibility Guidelines install unit so that towel dispenser slot is 48" (1219) maximum above finished floor (AFF) if clear floor reach access is provided.
Install unit for general utility with bottom edge 10" to 20-1/2" (254 to 521) AFF.
