ASI 204684-9-25

Name: ASI 204684-9-25 Surface Mounted Dual Sanitary Napkin and Tampon Dispenser
Brand: ASI
SKU: ASI 204684-9-25
Price: 1138.03 USD

ASI 204684-9-25 Surface Mounted Dual Sanitary Napkin and Tampon Dispenser

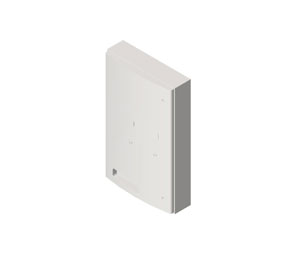

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $1,138.03 USD

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Surface Mounted Dual Sanitary Napkin and Tampon Dispenser

Dispenses 31 napkins and 22 tampons.
Door made of 18 gauge type 304 satin finish stainless steel, with two flush tumbler locks.
Coin boxes have different lock and key than doors.

Operation

Coin mechanism - 25¢ operation.
Napkin and tampon dispensers operate independently.
Selected product drops into vending opening after operator actuation
Indicator displays empty condition and blocks coin slot when product is depleted.
Vendor product supply is replenished on cycle determined by maintenance needs by opening door and manually reloading product into dispenser supply tracks.
Track weights MUST BE USED to provide positive feed.
Coins are emptied from locked collection boxes on a cycle determined by owner needs and requires key different than door key.

Installation

Mount unit in wall recess using four (4) № 10 x 1" (M5 x 25) self-tapping pan head screws (by others).
For compliance with ADA Accessibility Guidelines install unit so that coin slots are 48" (1219) maximum above finished floor (MAX AFF).
Be aware that some local codes (e.g. California, CBC) may require CSH to be 40" (1016) MAX AFF.
Note that coin slot is 14-15/16" (380) above bottom edge of RWO, and bottom flange is 13/16" (21) below bottom edge of RWO.
Sizes: 17-9/16" W x 28" H x 5 5/8" D
