ASI 204623

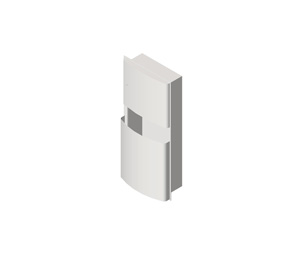

Name: ASI 204623 Recessed Mounted Paper Towel Dispenser and Removable Waste Receptacle
Brand: ASI
SKU: ASI 204623
Price: 383.70 USD

ASI 204623 Recessed Mounted Paper Towel Dispenser and Removable Waste Receptacle

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $383.70 USD

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Recessed Mounted Paper Towel Dispenser and Removable Waste Receptacle

Dispenses 350 C-fold, 475 multi-fold paper towels.
2.96 gal. (11.2 L) removable stainless steel waste receptacle with a tumbler lock.
22 gauge type 304 stainless steel door in a satin finish with a flush lock and a heavy-duty 3/16" staked piano hinge on door.
Wall Opening:12 3/4" W x 26 1/2" H x 4 1/4" D (325 x 670 x 110 mm)

Operation

Towels are self-feeding upon user manual demand until supply is depleted.
Unit may be reloaded with a partial load inplace and will continue to feed properly.
Towels are replenished and waste receptacle is emptied manually on a cycle determined by maintenance needs.
Locked door and waste receptacle prevents unauthorized access or removal.

Installation

Recess mount unit in wall using four (4) № 8 self-tapping flat head screws (by others) through concealed mounting holes provided.
For compliance with ADA Accessibility Guidelines install unit so that towel dispenser slot is 48" (1219) maximum above finished floor (AFF) if clear floor reach access is provided
Install unit for general utility with bottom edge 40" (1016) AFF.
Rough Wall Opening (RWO) required is 11-1/4" W x 26-7/16" H x 3-15/16" D (286 x 672x 100)
