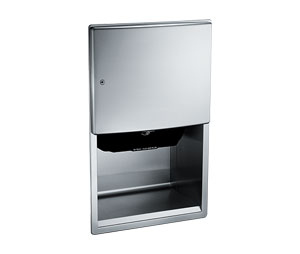

ASI 204523AC-9 Surface Mounted Automatic Roll Paper Towel Dispenser

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $888.10 USD

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Surface Mounted Automatic Roll Paper Towel Dispenser

Dispenses one 8" wide x 8" diameter standard towel roll up to 800 ft. long and one 8" wide stub roll up to 4" diameter.
Fabricated of 22 gauge stainless steel with satin finish.
Automatic Touchless Roll Towel Dispenser shall be powered by C-UL-US and CE approved internal low-voltage adapter (supplied) using 110-240VAC, 50/60 Hz and providing output of 5VDC @ 1A and shall operate automatically to activate towel dispensing when hands are placed in sensor zone.
Sizes: 17-19/32" W x 28" H x 11 11/16" D minimum

Operation

Towels are dispensed one length at a time automatically when hands are placed in sensor zone until supply is depleted
Owner predetermines length of towel dispensed by making selections on three (3) three-position switches for length, delay, and economy.
Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position.
Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit.
Dispenser supply is replenished and batteries are replaced manually on cycles determined by maintenance needs.
LED indicates sensing and battery condition.
Locking door prevents unauthorized access and roll removal.

Installation

Provide adequate in-wall reinforcement (by others) in drywall construction to hold mounted unit in-service after wall is finished.
Provide appropriate anchors (by others) to suit wall and field conditions for installation into walls other than new drywall.
Mount unit in wall recess using № 10 self-tapping screws (by others) through concealed mounting holes provided.
Note that top of RWO is 7/8" (22) below top of unit.
Power is supplied by code approved cable or conduit (by others) to RWO at any one of three [3] available locations indicated on diagram and terminated in utility duplex outlet box (provided) inside cabinet.
Power required is 110-240VAC, 50/60 Hz protected by a 15A circuit breaker (by others) for low voltage adapter that draws ¼ Amp.
Power adapter for dispenser unit is supplied cabled and plugged into dispenser and is plugged into duplex outlet (by others).
For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines install unit so that top edge of towel dispenser opening is 48" (1219) maximum above finished floor (MAX AFF) only if clear floor reach access is provided.
Be advised that local codes may require mounting so that top of towel dispenser opening is 40" (1016) MAX AFF (e.g. California UBC/Title 24).
For general utility install unit with top of towel dispenser opening between 49" and 56" (1245 to 1422) AFF.
