ASI 20363 Surface Mounted Vertical Soap Dispenser

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.

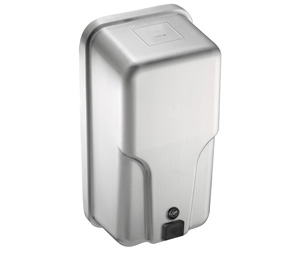

ASI 20363 Surface Mounted Vertical Soap Dispenser
More from ASI
Price: $75.60 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 4 business days with $82.50 minimum purchase of ASI products or 15 business days for smaller orders.

ASI has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:
ASI Surface Mounted Vertical Soap Dispenser
  • Valve operation complies with ADAAG, needing no more than 5 lbs of pressure to actuate.
  • Gently radiused edge complements the curves of the ASI Roval™ Collection.
  • Overall Size: 5 1/2” x 10 7/8” x 4” (140 x 276 x 102 mm) projection.
  • Capacity: 57 oz. (1.7 L).

Operation
  • Push button to dispense soap.
  • Unit is refilled through hinged door at top requiring special key (supplied) to open.
  • Soap tank will continue to feed properly until soap level is below valve intake port.
  • Tank supply is replenished manually on cycle determined by maintenance needs.
Installation
  • Secure concealed mounting plate (supplied) to wall or partition with three (3) self-tapping screws № 8 x 3/4" (M4.5 x 20) pan head (by others) through mounting holes provided in plate into plastic wall anchors or other suitable mounting system (provided by others).
  • Unit is secured to interlocking wedge bracket and locked in place by a locking screw (supplied) installed through hinged refill door.
  • Recommended installation for general utility is 42" (1066) AFF or 6" (152) minimum above washbasin.
  • Fill tank with appropriate viscosity soap to correct level and lock door.
  • Locking door protects soap from inadvertent introduction of contaminants.
  • Retain key provided for future access.
