ASI 20333

copy to clipboard

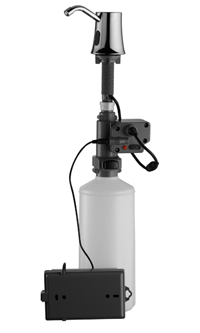

ASI 20333 Deck Mounted Automatic Soap Dispenser

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
ASI 20333 Deck Mounted Automatic Soap Dispenser
Main ImageVideo Review ASI 20333 Deck Mounted Automatic Soap Dispenser
More from ASI
Price: $158.36 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 3
In Stock (Minimums Apply):
For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

1-773-809-3667

Sales
Technical Support
Product Description:
ASI Automatic Deck Mounted Liquid Soap Dispenser
  • Capacity of 54 oz (1600 ml) of liquid soap within the viscosity range of 100 – 3500 cP (MPa•s)
  • Dispense in cycles of single shot volume of approximately 0.04 oz (1.25 ml).
  • Hands-free sensor controlled by microprocessor digital circuitry powered by four (4) D size 1.5 V batteries
  • Stainless steel alloy 18-8 spout with a polished finish over all exposed surfaces and achrome plated sensor housing
  • LED to indicate function, battery condition and soap supply level on front face.
  • Tank is easily disengaged and engaged into control housing by push button to facilitate refilling.
Operation
  • Unit is operate each time an object is positioned within the sensing range under the spout.
  • A drop of 0.04 oz (1.25 ml) of soap will be pumped from the nozzle upon each activation
  • Unit will dispense soap while batteries are at suitable charge level
  • LED will display red flash for sensing, solid red for low battery condition and solid blue for low soap level.
  • Push button releases tank for easy refilling.
Installation
  • Mount spout and sensor housing to vanity with rubber washers and basin nut (supplied) through mounting hole in deck
  • A ⅜" (10) high spacer is provided for installation with raised rim vanity basins.
  • Mount battery compartment in convenient location under vanity deck with two (2) screws and wall anchors (supplied).
  • Install four (4) D size 1.5 V cells (supplied by others) in / under-deck battery compartment according to polarity indication and screw lock cover.
Questions and Answers
Q: Do you know of any deck mounted automatic soap dispenser that comes in brushed nickel/stainless finish?
A: I am only aware of these in a bright chrome finish.

Please let us know if there is anything else we can help with.

Q: Hello, I am looking for a sink mounted auto soap dispenser for my kitchen. Actually one for my Mother in law and one for myself. Yours looks nice and beefy, but do you make a smaller model suitable for a residential kitchen? Is this one suitable for a residential kitchen? And do you have a vendor in the Sacramento area? Thanks for your help,
A: This unit is very well suited for a residential application and would perform above expectations. I have sold these in the past for applications of this nature and have had 100% success with prior clients. The size of the ASI is representative of others available with none being smaller. We do not have a Sacramento location but could ship from our Chicago location to you.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: PART NUMBER FOR SOAP FOR ASI 20333 DISPENSER
A: We do not sell the soap for this unit but any liquid soap within the viscosity range of 100 – 3500 cP (MPa•s).

I would suggest a janitorial supply.

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: how do you adjust the sensitivity of the sensor, what LEDs mean what?
A: On this unit the sensor range cannot be adjusted and this unit has a red and blue LED’s to indicate function, battery condition and soap supply level on front face as detailed here under Section 10:

Download File

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: Do you know what the battery life is or how often (or after how many soap dispenses) it should be replaced?
A: The general statement from our engineering department is “can not specify a specific time frame” - as it depends on use.

We feel "Low Traffic" – probably – annually seems reasonable and if "High Traffic" area, more often.

As you may already know, we can’t really give a firm answer due to the fact that there are outside factors that we have no control over, like the quality of the batteries being used and overall daily usage. Based on these outside factors, we think that batteries would last about 3-6 months, less if the batteries are of subpar quality, more if daily usage is low. Best suggestion is to check the batteries of each unit as part of the monthly/periodic maintenance schedule and change accordingly. Also, the unit does give notification of low battery power with a solid red LED light (see page 2 of owner’s manual in Troubleshooting section). Hope this helps.

Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: do you sell the spout assembly instead of the entire dispenser unit?
A: The spout assembly only from the ASI 20333 Deck Mounted Automatic Soap Dispenser is available as a standalone product and is the ASI 20333-04727 spout with sensor assembly connection as seen here:

Click Here

Q: Can the spout be purchased separate from the dispenser?
A: Yes, part number is ASI 20333-04727. It is the spout with sensor assembly connection.
Q: Is there any flush button in this system like B-824??
A: I have reviewed the installation instructions for the ASI 20333 Deck Mounted Automatic Soap Dispenser but see no 'Flush' feature on this unit. The manufacturer recommends you cycle the unit 10 - 20 times to price the unit and would conclude the flush procedure would be the same process.
Q: What do the Blue light indicate on the soap desprender?
A: A blue flashing light indicates one of the following four conditions:

  • low soap level
  • press counter reset button
  • refill soap
  • system malfunction, please consult with distributor

    as seen on page 4 of the manufacturer's installation instructions as seen here:

    Download File

  • Q: Is it possible to reduce or adjust the amount of soap coming out of a #20333 automatic soap dispenser?
    A: There is no reference to being able to adjust the volume of soap dispensed through the unit according to the installation instructions as seen here:

    Download File

    Additionally I did communicate directly with the factory who confirmed that that volume of soap cannot be adjusted.
