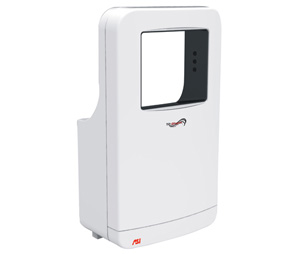

ASI 20201-1 Roval™ Collection TRI-Umph™ High-Speed Hand Dryer - 110-120V - White

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $1,358.34 USD

Comments (Optional)

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI 20201-1 Roval™ Collection TRI-Umph™ High-Speed Hand Dryer - 110-120V - White

Quick drying — about 12 seconds
Ergonomic — No need to bend over or bend knees
Air blows down and back from vents on three sides
No water splash-back: water from hands is pushed backwards onto absorbent ceramic plate…not the floor
Ultra hygienic — Over 99% of airborne bacteria is eliminated with the three-layer, removable Super Filter System, consisting of a HEPA filter, a carbon filter and an anti-microbial filter. Anti-microbial silver sodium added to the ABS cover provides an additional layer of germ protection
Owner-adjustable heater (on or off) and air flow
Overall Size: 12-43/64” W x 23-1/8” H x 7-3/4” D (322 x 588 x 197 mm)

Specifications

Motor: 1 HP, 20 krpm MAX, brush type dual ball bearings
Volts: 110/120V
Hertz: 50/60Hz
Warm Air Temp Output (when heater is on): 122° F (50° C) MAX at 70° (25° C) ambient room temp
Watts:1200W with heater on; 750W with heater off (450W heater element)
Motor Protection Thermostat: Auto resetting thermostat turns unit off at 275° F (135° C) @ 120V, 203° F (95° C) @ 240-277V
Heater Safety Off: 185° F (85° C)
Drying Time: About 12 seconds
Circuit Operation: Infrared automatic
Sensor Range: 4-23⁄32” ± 25⁄64” (120mm ± 10mm)
Timing: 2-second hold-on; 60-second auto shut-off
Noise (Decibel) Level: 65 dB-A MIN to 69.8 dB-A MAX @ 2M
Air Speed: 145 mph (213 ft/s) [65 m/s {234 km/h}] - 224 mph (328 ft/s) [100 m/s {360 km/h}], adjustable by owner
Air Flow (Volume): 55 - 76 CFM (89 - 124m³/h)
Cover Finish: ABS plastic with silver ions (satin look)
Net Weight / Shipping Weight :19.8 lbs. (9 kg) / 23.1 lbs. (10.5 kg)
Warranty: 5 years

Operation

User activates dryer by placing hands into open hand chamber.
LED’s change color from amber ready-status to soothing blue to indicate operation.
Directional air jets from three (3) sides blow water droplets off hands onto evaporator plate.
Dryer automatically shuts off after time-out (Hold-On) when user removes hands from sensor zone or after 60 seconds if unit is purposefully kept operating for longer than normal drying time (e.g. washroom experimentation, vandalism)

Installation

Mount unit cabinet on wall with eight (8) № 10 x 1-1/4" (M5) pan head screws (supplied) through wall plate (provided) into plastic anchors (supplied) or other suitably prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions.
Electrical service (see rating per model; provided by others) is either provided to duplex outlet in wall adjacent to unit mounting location or brought to KO location for dryer indicated on diagram prior to installation of unit.
Electrical service is supplied and connected (by others) in accordance with schematic and Owner’s Manual provided with unit prior to installing access drawer.
Cabinet is secured first to wall plate with a concealed pin-hex socket pan head security screw (supplied) and then filter drawer is secured also with a concealed pin-hex socket pan head security screw (supplied).
For compliance with ICC/ANSI A-117.1 and 2010 ADA Accessibility Standards install unit with top of dryer hand chamber less than 46-3/4" (1187) above finished floor (MAX AFF).
For general utility install unit so that top of dryer hand chamber is 44" to 50" (1118 to 1270) AFF.
For installation of two or more dryers, units should be no closer than 24" (610) on center.
See OM & IG for additional mounting heights for age specific sites.
