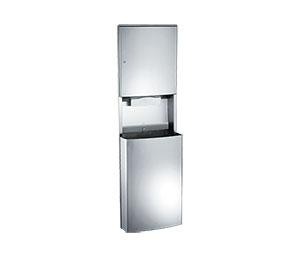

ASI 10-20469 Roval Recessed Mounted Paper Towel Dispenser and Removable Waste Receptacle - Multi, C‐Fold

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
ASI 10-20469 Roval Recessed Mounted Paper Towel Dispenser and Removable Waste Receptacle - Multi, C‐Fold
More from ASI
Price: $816.57 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
Yonkers, NY Warehouse Qty: 274
For quantities beyond the "In Stock" above, the item(s) ships in 4-9 business days.

1-844-809-3667

Sales
Technical Support
Product Description:

crl logo ASI 10-20469 Roval Recessed Mounted Paper Towel Dispenser and Removable Waste Receptacle - Multi, C‐Fold
Roval Collection Recess Mounted Paper Towel Dispenser and Waste Receptacle unit shall hold and dispense 800 standard multifold or 600 standard C-fold paper towels and shall have a waste capacity of 14.8 gal (56 liters). Cabinet full door shall be drawn seamless and shall have bowed front face and gently radiused edges to provide added strength and complimentary appearance for modern washroom aesthetics. Door and waste receptacle shall be 18 gauge type 304 stainless steel alloy 18-8. Towel dispenser, frame, and cabinet shall be 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation. Towel dispensing slot shall have a fully hemmed-in rolled edge for snagfree dispensing and user safety.
  • Recessed Mounted Paper Towel Dispenser and Removable Waste Receptacle - Multi, C‐Fold - Recessed
  • Dispenses 600 C-fold or 800 Multi-Fold paper towels
  • Towels are self-feeding upon user manual demand
  • Waste capacity of 14.8 gal (56 liters)
  • Overall dimensions: 17-3/8" x 56-1/16" x 9" (441 x 1424 x 228 mm)
  • Wall opening: 15-5/8" x 54-3/8" x 4" (397 x 1381 x 102 mm)
uired
Description

Towels are self-feeding upon user manual demand until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly. Towels are replenished and waste receptacle is emptied manually. Locked door and waste receptacle prevents unauthorized access or removal.Door shall be attached to cabinet at side with a full-length 1/8" diameter (Ø3.1) stainless steel multistaked piano hinge and be held closed with a flush rimless tumbler lock keyed alike to other ASI washroom equipment. Internally concealed doorstop shall prevent over-swing when opened rapidly. Waste receptacle with internal bag-hanger hooks shall have a fully hemmed top edge for safety and a rear handle for service ease and is retained by a tumbler lock keyed alike to other ASI washroom equipment. Face trim shall be 1" (25) wide formed from one piece with no miters, welding or open seams and have 1/8" (3) radiused return to wall. Structural assembly of body and door components shall be of welded construction. Cabinet shall have no exposed fastening devices or spot-welded seams.

uired
Operation

Towels are self-feeding upon user manual demand until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly. Towels are replenished and waste receptacle is emptied manually on a cycle determined by maintenance needs. Locked door and waste receptacle prevents unauthorized access or removal.

Questions and Answers
There are currently no questions or answers.
(Required, used to email you once question is answered.)
