ASI 10-1000

copy to clipboard

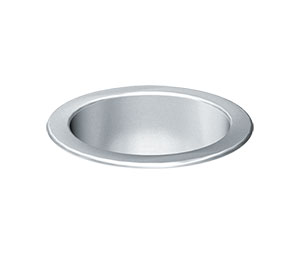

ASI 10-1000 Traditional Vanity Mounted Waste Chute

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
ASI 10-1000 Traditional Vanity Mounted Waste Chute
More from ASI
Price: $86.38 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 3
In Stock (Minimums Apply):
Yonkers, NY Warehouse Qty: 307
For quantities beyond the "In Stock" above, the item(s) ships in 4-9 business days.

1-844-809-3667

Sales
Technical Support
Product Description:

crl logo ASI 10-1000 Traditional Vanity Mounted Waste Chute
Circular waste chute shall be fabricated from heavy gauge alloy 18-8 stainless steel, type 304. All exposed rolled flange and interior surfaces of the chute shall have satin finish. Unit provides waste deposit access to receptacle (not furnished) placed under countertop opening.
  • Vanity Mounted Waste Chute
  • Unit provides waste deposit access to receptacle placed under countertop opening
  • Finish: Satin
  • Fabricated of 22 gauge Type 304 Stainless Steel alloy 18-8 with rolled flange
  • Unit is designed for permanent installation in 5-3/4" diameter (146 mm) hole in any countertop.
  • Unit size: 6-3/4" DIA x 5-5/8" x 4-3/4" (171 DIA x 143 x 121 mm)
uired
Description

Provides waste deposit access to receptacle (not furnished) placed directly below chute; made of heavy gauge stainless steel with rolled flange and exposed surfaces that have satin finish. Unit is designed for permanent installation in 5-¾" diameter (Ø146) hole in any countertop.

uired
Operation

Fill in underside of waste chute lip and around portion of waste chute body that protrudes down into mounting hole with silicone sealant (not furnished). Install unit into countertop hole. Once unit is set in place, wipe off any excess silicone sealant with a clean rag.
