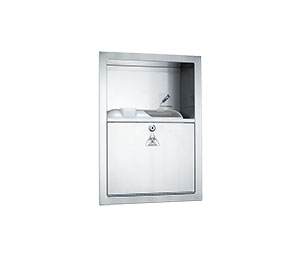

ASI 0548-9 Surface Mounted Traditional Recessed Sharps Disposal Cabinet - Container Not Included - Stainless Steel

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
ASI 0548-9 Surface Mounted Traditional Recessed Sharps Disposal Cabinet - Container Not Included - Stainless Steel
More from ASI
Price: $317.27 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
Yonkers, NY Warehouse Qty: 54
For quantities beyond the "In Stock" above, the item(s) ships in 4-9 business days.

1-844-809-3667

Sales
Technical Support
Product Description:

ASI 0548-9 Surface Mounted Traditional Recessed Sharps Disposal Cabinet - Container Not Included - Stainless Steel
Recessed Sharps Disposal Cabinet and door shall be 18 gauge [1.2] type 304 stainless steel alloy 18-8 and shall accommodate one (1) Becton, Dickinson and Company (BD) Brand Sharps Collector model № 305443 (by others). Structural assembly of all cabinet components shall be of welded construction. Fixed trim shall be 1" [25] wide formed from one piece 18 gauge type 304 stainless steel with no miters, welding or open seams and have 1/4" [6] square returns to wall or partition.
  • Sharps Disposal Cabinet
  • Cabinet and door shall be 18 gauge [1.2] type 304 stainless steel
  • Wall Opening: 12-1/8" x 17-3/4" x 5" min. (308 x 451 x 127)
  • Unit Size: 13-3/4" x 19-1/16" x 5-1/4" (349 x 466 x 133 mm)
uired
Description

Door shall be attached to the cabinet at bottom with a full-length 3/16" diameter [Ø4.8] stainless steel multi-staked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Door shall be prominently marked with graphic label indicating Biohazard. All exposed surfaces shall be satin finish and shall be protected during shipment with PVC film easily removable after installation. Door attached to the cabinet at bottom and is held closed with a tumbler lock.

uired
Operation

Sharps (by others) are deposited through top of Sharps Collector (BD model № 305443, by others) as per instructions supplied with the specified model. Sharps Collector is replaced manually on cycle determined by maintenance needs. Locked cabinet prevents unauthorized removal.
