ASI 0210 Traditional Surface Mounted Paper Towel Dispenser, Multi, C-Fold

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
ASI 0210 Traditional Surface Mounted Paper Towel Dispenser, Multi, C-Fold
More from ASI
Price: $52.08 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
Yonkers, NY Warehouse Qty: 2284
Quick Ship - up to 25 units available to ship in 1 business day with $82.50 minimum purchase of ASI products
Standard - ships in 4 business days with $82.50 minimum purchase of ASI products or 15 business days for smaller orders.

ASI has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a stock order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:

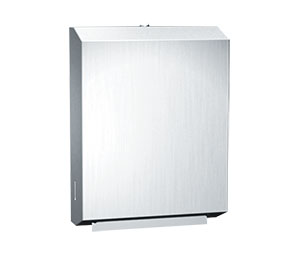

ASI 10-0210 Traditional Surface Mounted Paper Towel Dispenser, Multi, C-Fold
Surface Mounted Paper Towel Dispenser shall hold and dispense 525 standard multi-fold or 400 standard C-fold paper towels and shall be fabricated 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall have a No 4 satin finish and shall be protected during shipment with PVC film easily removable after installation. Towel dispensing slot shall have a fully hemmedin rolled edge for snag-free dispensing and user safety.
  • Surface Mounted Paper Towel Dispenser
  • This unit dispenses 525 standard Multi-fold or 400 standard C-fold paper towels
  • Finish: Satin
  • Fabricated of 22 gauge Type 304 Stainless Steel alloy 18-8
  • Dispenser door shall be attached to the bottom of unit with a concealed full length 3/16" diameter (Ø4.8) heavy duty stainless steel multi-staked piano hinge
  • Unit shall have internal towel stack guides
  • Unit size: 11" x 14-5/8" x 4-1/16" (279 x 368 x 103 mm)
uired
Description

Dispenser door shall be attached to the bottom of unit with a concealed full length 3/16" diameter (Ø4.8) heavy duty stainless steel multi-staked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Structural assembly of body and door components shall be of welded construction. Unit shall be provided with refill viewer slots on each side. Unit shall have internal towel stack guides. Wall below unit shall be protected against accidental door drop by self-limiting body and hinge construction. Dispenser shall enable simplified installation by hanging on pre-installed screw pattern (by others). Unit is surface mounted on wall or partition using five No 10 self-tapping screws (by others) through concealed mounting holes provided. Four mounting holes through back are keyhole slots for ease in hanging unit on pre-installed screws. Center top mounting hole is horizontal slot for ease of adjustment and vandal resistant locking. For compliance with ADA Accessibility Guidelines, install unit so that towel dispenser slot is 48" (1219) maximum AFF if clear floor access is provided or 46" (1168) maximum AFF if side reach over an obstruction (vanity) is only provided. Fabricated of 22 gauge stainless steel with satin finish, this unit dispenses 400 C-fold or 525 multi-fold paper towels without adjustment or adapters and is fitted with tumbler lock and heavy-duty stainless steel piano hinge.

uired
Operation

Towels are self-feeding as withdrawn by hand until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly. Low level of towel supply is indicated from 25% capacity to empty. Locking door prevents unauthorized access or removal.
