ASI 0952

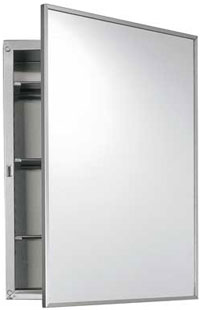

ASI 0952 Recessed Medicine Cabinet

× This image is for a similar product but it will differ in size, color and/or other attributes.

Quote Only Item

This item must be quoted prior to order. Please Contact Us for further details.

Sales

Technical Support

Product Description:

ASI Recess Mounted Medicine Cabinet with Mirror

Operation

User pulls door to access contents and manually pushes door shut.
Adjust shelf spacing by removing shelves and reinserting in any of five (5) internally embossed tracks on each side of cabinet interior.

Installation

Rough wall opening (RWO) required is 16" W x 22-3/4" H x 3-1/2" D (406 x 578 x 89)
Unit is mounted in rough wall opening (RWO) using four (4) No 10 self-tapping screws (by others) through concealed mounting holes provided in cabinet sides.
Typical mounting height is 46" (1168) from bottom of mirror door above finish floor (AFF) or 12" (305) above lavatory counter top.
For compliance with ADA Accessibility Guidelines, install unit so that bottom edge of reflecting surface is no higher than 40" (1016) AFF.
Note that bottom edge of reflecting surface is 3/4" (19) below RWO.
Invert cabinet to change left hand swing (shown) to right hand swing as required.
