ASI 0795

copy to clipboard

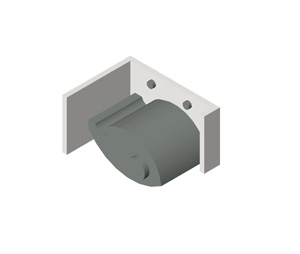

ASI 0795 Mop Holder

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
ASI 0795 Mop Holder
More from ASI
Price: $8.52 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 4 business days with $82.50 minimum purchase of ASI products or 15 business days for smaller orders.

ASI has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-773-809-3667

Sales
Technical Support
Product Description:
ASI Mop Holder
  • Fabricated of cadmium plated steel and ribbed for rigidity
  • Pivoting spring loaded serrated rubber cam holds round handles of 7/8" to 1 1/4" diameter (22 to 32 mm) wedged against ribbed clamp plate
  • Unit shall be surface mounted by others

uired
Operation
  • Mop or broom handle is pushed into grip-jaw of pivoting serrated rubber cam with upward motion until it seats behind rib on clamp plate.
  • Spring holds cam against handle.
  • Gravity holds mop clamped in position.
Installation
  • For general utility mount mop holder 70" (1788) AFF (above finished floor) from bottom of mop holder.
  • Secure mop holder to wall with two (2) No 10 self-tapping screws (supplied by others) through mounting holes in back plate.
  • For compliance with ADA Accessibility Guidelines, install unit with top of mop holder at 48" (1219) MAX AFF if clear floor access is provided.
