ASI 0551

Name: ASI 0551 Recessed Bedpan and Urinal Bottle Storage Cabinet
Brand: ASI
SKU: ASI 0551
Price: 538.99 USD

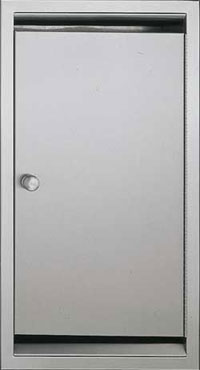

ASI 0551 Recessed Bedpan and Urinal Bottle Storage Cabinet

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $538.99 USD

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Recess Mounted Bedpan and Urinal Bottle Storage Cabinet

Operation

Cabinet door is held shut with an easy opening magnetic catch.
The bedpan is stored on the shelf and held in place by a stainless steel rod.
The urinal bottle is stored in the bottom of the cabinet.
An open space across the top and bottom of the door allows air to circulate by convection.

Installation

Rough Wall Opening (RWO) required is 13-3/8" W x 26-1/2" H x 5-3/8" D (340mm x 673mm x 137mm)
For compliance with ADA Accessibility Guidelines, install unit so that bedpan shelf is 54" (1372mm) maximum above finished floor (MAX AFF) if clear floor side reach access is provided or 48" (1219mm) MAX AFF if clear floor forward reach access is provided or 46" (1168mm) MAX AFF if side reach over an obstruction is only provided (e.g. vanity).
Secure recessed cabinet to wall with No 10 self-tapping screws (by others) through concealed mounting holes.
