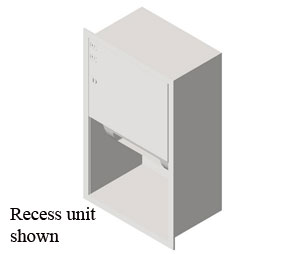

ASI 045210AC Recessed Automatic Roll Paper Towel Dispenser

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
ASI 045210AC Recessed Automatic Roll Paper Towel Dispenser
More from ASI
Price: $567.82 USD
Ships From
Comments (Optional)
Standard - ships in 4 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
ASI Recessed Mounted Automatic Paper Towel Dispenser
  • Powered by C-UL-US and CE approved internal low-voltage adapter (supplied) using 110-240VAC
  • Satin stainless steel
  • Tumbler lock keyed alike to other ASI washroom equipment
  • Rough wall opening recquired is 15-3/4" W x 26-1/2" H x 4" D (400 x 673 x 102)
  • Image shows manual model

uired
Operation
  • Towels are dispensed one length at a time automatically when hands are placed in sensor zone until supply is depleted.
  • Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when
    reloaded with a full roll and partial roll is transferred to stub roll position.
  • Length of towel dispensed is predetermined by owner by making selections on three position switches for length, delay, economy.
  • Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit..
  • Locking door prevents unauthorized access and roll removal.
Installation
  • Unit is mounted in wall recess using No 10 self-tapping screws (by others) through concealed mounting holes provided.
  • Note that top of RWO is 3/4" (19) below top of unit. For compliance with ADA Accessibility Guidelines, unit should be installed so that bottom edge of towel dispenser door is 48" (1219) maximum above finished floor (MAX AFF).
  • Power is supplied by code approved cable or conduit (by others) to RWO at any one of three [3] available locations indicated on diagram and terminated in utility simplex outlet box (provided) inside cabinet.
  • Power required is 110-240VAC at 50/60 Hz protected by a 15A circuit breaker (by others) for low voltage adapter that draws ΒΌ Amp.
  • Power adapter for dispenser unit is supplied cabled and plugged into dispenser and is plugged into simplex outlet (by others).
  • Rough wall opening recquired is 15-3/4" W x 18-1/2" H x 3-1/2" D (400 x 470 x 89)
