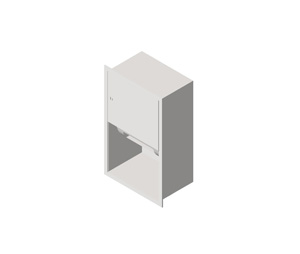

ASI 045210A Recess Mounted Touchless Paper Towel Dispenser

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $572.03 USD

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Recess Mounted Touchless Paper Towel Dispenser

Powered by four (4) D-size batteries (not supplied) and shall operate automatically to activate towel dispensing when hands are placed in sensor zone
Satin stainless steel
Tumbler lock keyed alike to other ASI washroom equipment
Rough wall opening required is 15-3/4" W x 26-1/2" H x 10-1/4" D (400 x 673 x 260)

uired

Operation

Towels are dispensed one length at a time automatically when hands are placed in sensor zone until supply is depleted.
Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when
reloaded with a full roll and partial roll is transferred to stub roll position.
Length of towel dispensed is predetermined by owner by making selections on three position switches for length, delay, economy.
Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit.
Locking door prevents unauthorized access and roll removal.

Installation

Unit is mounted in wall recess using No 10 self-tapping screws (by others) through concealed mounting holes provided.
Note that top of RWO is 3/4" (19) below top of unit. For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines, install unit so that top edge of towel dispenser opening is 48" (1219) maximum above finished floor (MAX AFF) only if clear floor forward reach or side reach access is provided.
Be advised that local codes may require mounting so that top of towel dispenser opening is 40" (1016) MAX AFF (e.g. California UBC/Title 24).
For general utility install unit with top of towel dispenser opening between 49" and 56" (1245 to 1422) AFF.
