ASI 0198-1
ASI 0198-1

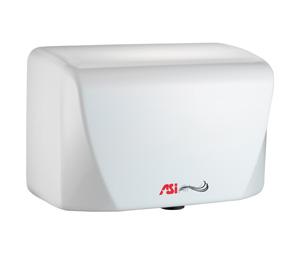

ASI 0198-1 Turbo-Dri™ Surface Mounted Automatic High Speed Hand Dryer - 110-120 VAC - White
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
125.62 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
For quantities beyond the "In Stock" above, the item(s)
ships in 4 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $82.50 worth of product from ASI to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
ASI 0198-1 Turbo-Dri™ Surface Mounted Automatic High Speed Hand Dryer - 110-120 VAC - White
Quick drying — less than 15 seconds Surface Mounted High Speed Hand Dryer
Operates automatically from IR sensor activated by beam reflection from objects placed in sensing zone.
Auto-resetting thermostat
60-second automatic shut off
Cover shall be heavyduty, one piece formed 18 gage stainless steel satin finished on all exposed surfaces (by option specified) or heavy-duty, one piece formed 18 gage steel finished on all exposed surfaces with white porcelain enamel.
Finish: White
Voltage : 110-120 VAC 50/60 Hz
Air Output: 68 CFM max - Temp: 140° F (60° C)
Heater: 500 Watts
Current: 10.4 Amps @ 120 VAC; 5.2 Amps @ 240 VAC
Overall size: 9 25/32" W x 6 5/8" H x 5 7/16" D (248 x 168 x 138 mm)
Replacement Circuit Board & Sensor is available here:
ASI A0178
Cut Sheet
Circuit Diagram
Manual
Template
Operation
Dryer is activated by user placing hands under sensor.
Blue light directs user to locate hands in optimum drying position.
Dryer automatically shuts off after user removes hands from sensor zone.
Installation
Surface mount unit on wall with four (4) 1/4" washers and screws or bolts (not supplied)
Electrical service is supplied and connected (by others) prior to installing cover.
Cover is secured to back plate with recessed, pin-hex socket head cap screws (supplied).
For general utility install unit so that sensor lens is 44" to 54" [1118 to 1372] AFF.
Questions and Answers
Q: Control module available?
A:
Sure is and is sold as the circuit board & sensor.
A0178 as seen here:
Click Here
for 110-120V dryer A0179 as seen here:
Click Here
for 220-240V dryer
