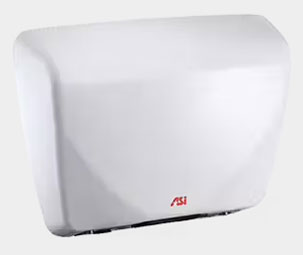

ASI 0184 Surface Mounted Automatic Sensor Hand Dryer - 277VAC - White

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $569.42 USD

Comments (Optional)

In Stock (Minimums Apply):

Yonkers, NY Warehouse Qty: 35

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI 0184 Surface Mounted Automatic Sensor Hand Dryer - 277VAC - White

Quick drying - under 25 seconds Surface Mounted Sensor Hand Dryer
No touch energy efficient operation
Steel cover with porcelain enamel finish
Operates automatically from IR sensor that shall activate dryer when hands are placed in sensor zone.
Motor and heating element shall have internal resetting automatic thermal protection.
Cover shall be fabricated of one-piece, 16 gage (.063", {1.6}) thick drawn steel or type 304 stainless steel and shall have all exposed surfaces finished with acid, chip and scratch resistant porcelain enamel on steel or bright or satin finish on stainless steel.
Type: Fixed Outlet
Supply: 277 VAC 50/60Hz
Dimension: 14-7/16″ x 10-13/16″ x 3-15/16″ (367 x 275 x 100 mm)
Finish: White


Cut Sheet	Circuit Diagram	Manual	Template

Mechanical Information

Volts: 277VAC
Hertz: 50/60Hz
Amps: 7.9
Watts: 2200
Motor: Brush Type Dual Ball Bearings with 221o F (105o C) auto reset circuit breaker
H/P: 1/4
RPM: 7500
Fan Type: Single Inlet Centrifgal
Air Flow: 185 CFM
Sensor: Adjustable Activation Range 2" to 13" (51 to 330)
Heating Element: 2020W @ 7.12Ω Nichrome wire @ 120VAC with 149o F (65o C) auto reset circuit breaker
Heat Temp: 149° F (65o C) @ 77° F (25° C) ambient room temperature
Auto shut-off: 120 sec. maximum

Operation

Dryer is activated by user placing hands under sensor.
LED in sensor array shines blue light during operation to guide user to optimal hand placement for shorter drying time.
Dryer automatically shuts off after time-out when user removes hands from sensor zone.

Installation

Unit is surface mounted on wall with four (4) 1/4" screws, washers and bushings (supplied) through rubber grommets (supplied) in a corrosion protected formed heavy steel back plate.
For masonry walls use expansion bolts or anchors for 1/4" (6mm) screws.
Electrical service is supplied and connected (by others) prior to installing cover.
Cover is secured to back plate with two (2) hex socket security screws (supplied).
For compliance with ADA Accessibility Guidelines, unit should be installed so that bottom edge of dryer is 48 " (1219mm) maximum above finished floor (AFF) .
For general utility install unit so that bottom edge of dryer is 45" to 50" (1143mm to 1270mm) AFF.
For two or more dryers, dryers should be no closer than 24" (610mm) on center.
