ASI 0144-71

Name: ASI 0144-71 Cast Aluminum Automatic Almond Hand & Face Dryer
Brand: ASI
SKU: ASI 0144-71
Price: 586.38 USD

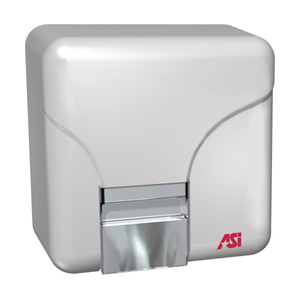

ASI 0144-71 Cast Aluminum Automatic Almond Hand & Face Dryer

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $586.38 USD

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Surface Mounted Automatic Almond Hand Dryer

208-240 Vac 11 Amps
Quick Drying - Under 30 Seconds
No Touch - Energy Efficient Operation
Dries Both Hands and Face
Overall size: 8 7/8" x 12" x 7 7/8" (225 x 305 x 200 mm)
Motor: 1/8 HP - 3400 RPM - Brushless Air Output: 150
CFM - Temp: 149° F (65° C)
Heater: 1900 Watts @ 110 Vac
Current: 16 Amps @ 120 Vac
Color: Almond
Cover is befabricated of one-piece, heavy-duty cast aluminum 7/64" (.109", 2.8) thick
All exposed surfaces finished with acid, chip and scratch resistant epoxy enamel.


Cut Sheet	Circuit Diagram	Manual	Installation Instruction

Operation

Dryer is activated by user placing hands under sensor.
Dryer automatically shuts off after time-out when user removes hands from sensor zone.
User manually tilts flip nozzle for face drying and holds it in position.
Nozzle automatically returns to hand position when unit turns off.

Installation

Unit is surface mounted on wall with four (4) 1/4" (M6) screws (supplied) through holes provided in back plate.
For masonry walls use expansion bolts or anchors for 1/4" (M6) screws.
Cover is secured to back plate with two (2) tamper-resistant lock screws (supplied) using key wrench provided.
