ASI 0133

Name: 0133 Stainless Steel Automatic Hand Dryer
Brand: ASI
SKU: ASI 0133
Price: 771.80 USD

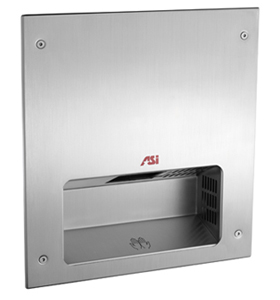

0133 Stainless Steel Automatic Hand Dryer

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $771.80 USD

Comments (Optional)

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Recessed Mounted Automatic Hand Dryer

Cover shall be fabricated in one piece of 14 gauge (.078", {2}) thick type 304 stainless steel alloy 18-8.
All exposed surfaces shall have a No 4 satin finish
Motor and heating element have internal resetting automatic thermal protection.
Fixed directional air vanes heavy duty, rust proof and tamper resistant.
Cabinet - 20 gauge corrosion protected steel with a 1/2" (13) wide perimeter trim to lay flush against wall
Wall opening: 14" W x 16" H x 4" D (356 x 406 x 102 mm)


Cut Sheet	Installation Instruction	Manual

Operation

Operates automatically from IR sensor that shall activate dryer when hands are placed in sensor zone.

Installation

Mount unit cabinet in wall recess with four (4) No 10 (M5) screws (not supplied) into suitably prepared mountings (by others)
Cover is secured to cabinet with four (4) pin-hex socket flat head security screws (supplied)..
For installation of two or more dryers, dryers should be no closer than 24" (610) on center.
