ASI 0039

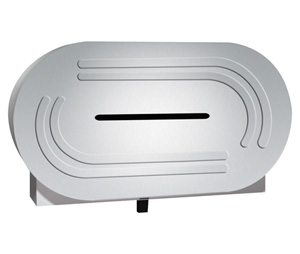

Name: ASI 0039 Jumbo Roll Toilet Tissue Dispenser - Surface Mounted
Brand: ASI
SKU: ASI 0039
Price: 159.33 USD

ASI 0039 Jumbo Roll Toilet Tissue Dispenser - Surface Mounted

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $159.33 USD

Comments (Optional)

In Stock (Minimums Apply):

Yonkers, NY Warehouse Qty: 3727

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

Sales

Technical Support

Product Description:

ASI Jumbo Roll Toilet Tissue Dispenser - Surface Mounted

holds two (2) jumbo-size 9" diameter (Ø229) rolls of 3" diameter (Ø76) or 2-1/4" diameter (Ø57) core tissue
When one roll is finished, the other roll can be selected by shifting over panel lever at bottom of unit
18 gauge type 304 stainless steel with a satin finish
Equipped with tumbler lock
20 1/2" x 11 3/16" x 4 11/16" (521 x 284 x 119 mm)

Operation

Two (2) 9" (Ø229) OD jumbo rolls of toilet tissue are mounted over 3" (Ø76) ID core adapters.
Two (2) 2-1/4" (Ø57) ID core rolls may be used by removing the core adapters.
Whenever one roll of toilet tissue is depleted, the other roll is selected by shifting over the lever at the bottom of the unit.
Viewing slot continuously reveals tissue level. Key and locked door prevents unauthorized access or removal.
Tissue supply is replenished on a cycle determined by maintenance needs.

Installation

Surface mount unit for general utility within 12" (305) of front of toilet from centerline and 31" (787) above finished floor (AFF) from bottom of unit with five (5) screws (by others) through mounting holes provided.
Install unit for compliance with 2010 ADA Accessibility Standards so that centerline of nearest roll is no farther than 7"~9" (178~229) from front of commode and centerline of rolls is 19" (483) minimum AFF to 44" (1118) max AFF
